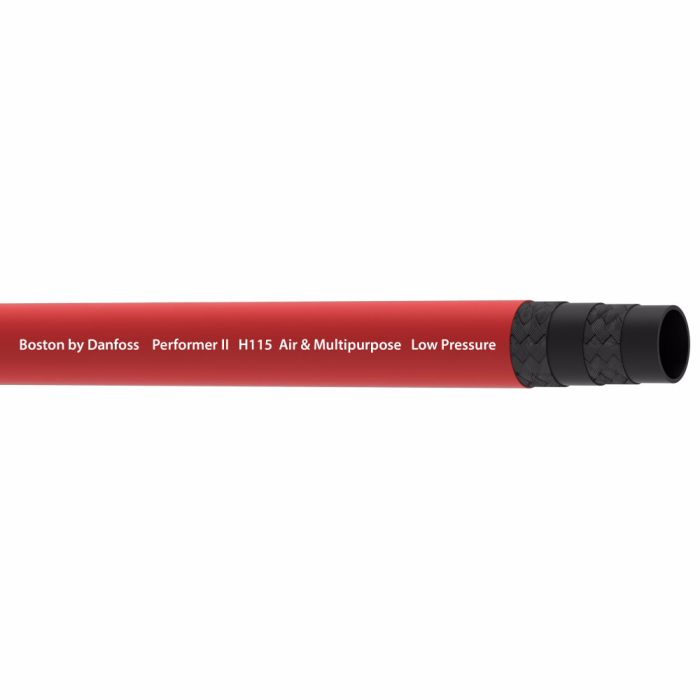

WEATHERHEAD H115 Hose IGH11516

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HB23	Application Air and multi purpose.	Color Red	Conductivity 30	Construction 2-ply braid	Cover Material Vinyl Nitrile	Dash Size -16	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 7.25	Minimum Bend Radius 7.25	Minimum Working Temperature -40	NMFC 70	Product Width 1.44	Qualified Hose Fittings Z, 430 U	Reinforcement Material Polyester	Sub Brand None	Supplier Part Number H11516	Tube Material Nitrile	Product Weight 31.00 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this hose will hold up okay for running air tools in my shop?

Question by: Howard A on Apr 16, 2025, 9:32 AM

Designed with a 2-ply braid reinforcement and a vinyl nitrile cover, this hose should provide standard abrasion resistance suitable for air tool applications.

Answer by: Customer Support on Apr 17, 2025, 12:06 PM

got a tight spot to route it, how bendy is that H11516 hose?

Question by: Ralph E on Aug 20, 2025, 1:23 PM

For routing and install clearance, the minimum bend radius on the H11516 is 7.25 inches, so it needs about that much radius to make a turn without kinking.

Answer by: Customer Support on Aug 22, 2025, 10:41 AM

hose is red, that on purpose or just how it comes? trying to figure out if itll be easy to tell apart from other lines we got running in the shop

Question by: Hugh P on Oct 29, 2025, 7:45 AM

Red is the standard color for this hose, and yeah it does help a lot with identification when you've got multiple lines running close together. Makes it easier to sort out which is which at a glance without tracing the whole run.

Answer by: Customer Support on Oct 31, 2025, 6:10 AM
