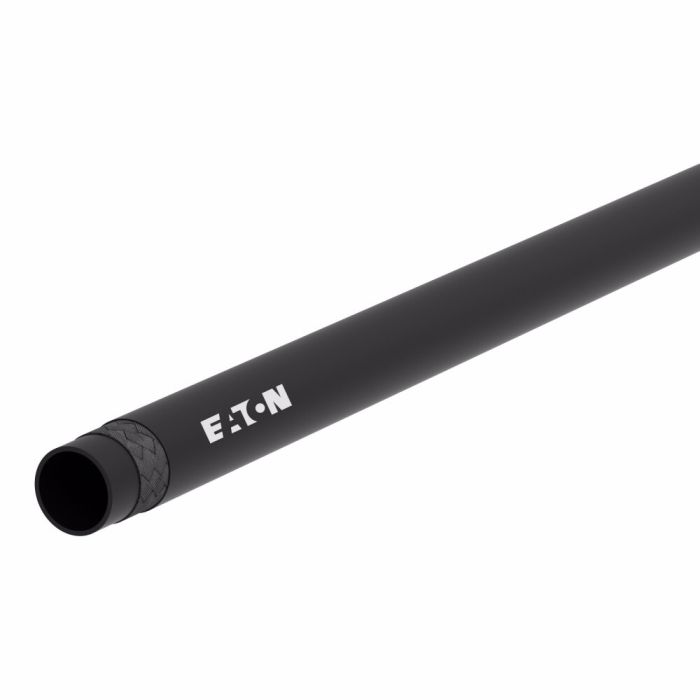

Weatherhead H104 Hose SAE 100R1 IGH10412-250R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HB16	Certifications SAE J1942-Fuel and Lube Service\|SAE 100R1AT\|ABS	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Neoprene	Dash Size -12	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Minimum Bend Radius 9.50	Minimum Bend Radius 9.5	Minimum Working Temperature -40	NMFC 70	Product Width 1.13	Qualified Hose Fittings U, S, 104 N, Z	Reinforcement Material Steel	Supplier Part Number H10412-250R	Tube Material Nitrile	Product Weight 0.41 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight spot to snake a hose through, how sharp can this H104 bend without kinkin it

Question by: Denise A on Feb 18, 2026, 1:22 PM

For tight routing, the minimum bend radius on the Weatherhead H104 SAE 100R1 hose is 9.5 inches. Keeping the bend at or above that radius helps it flex without being forced into a kink.

Answer by: Customer Support on Feb 20, 2026, 1:07 PM

Does this hose hold up in fuel and lube line work, or is it more of a general-purpose setup?

Question by: Curt G on Jul 14, 2025, 9:46 AM

Fuel and lube service is exactly what it's rated for. The H104 carries SAE J1942 approval for fuel and lube applications, and the nitrile tube material handles petroleum-based fluids well. The neoprene cover adds abrasion resistance on top of that, so it holds up in working environments where the line might see some contact or movement.

Answer by: Customer Support on Jul 16, 2025, 7:00 AM

What kind of fittings go with this hose, if I'm usin' it for fuel lines on an old tractor?

Question by: Tommy S on Aug 30, 2025, 6:36 AM

Qualified hose fittings for the Weatherhead H104 include U, S, 104 N, and Z series. It's designed to handle fuel and lube services and complies with SAE J1942 standards.

Answer by: Customer Support on Aug 31, 2025, 6:42 AM
