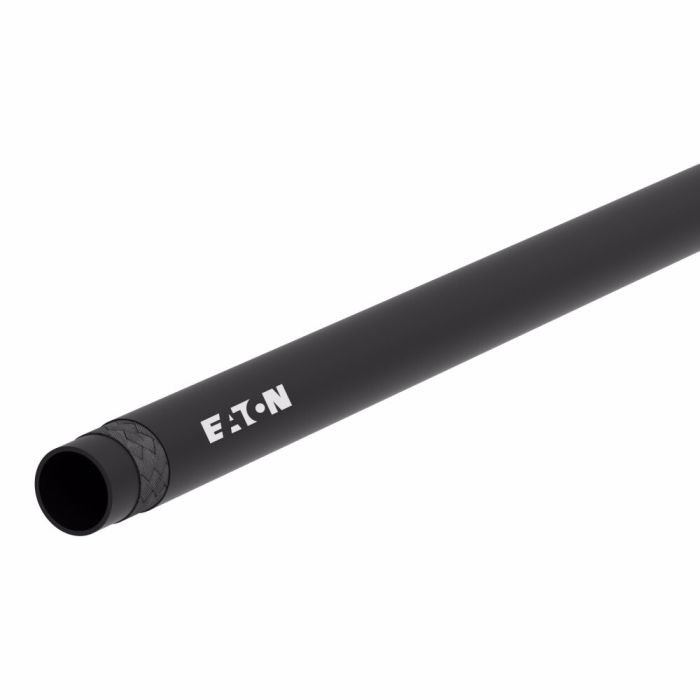

Weatherhead H104 Hose SAE 100R1

Abrasion Resistance
29
Alternate Part Numbers
Alternate Part Number C1HB14
Certifications
SAE 100R1AT|ABS|SAE J1942-Fuel and Lube Service
Color
Black
Compliances
MSHA Approved
Conductivity
30
Construction
1 Ply Braid
Cover Material
Neoprene
Dash Size
-8
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
ICC
Hoses and Flexible Tubes
Language
English
Minimum Bend Radius
7
Minimum Bend Radius
7
Minimum Working Temperature
-40
NMFC
70
Product Width
0.85
Qualified Hose Fittings
U, S, 104 N, Z Series
Reinforcement Material
Steel
Supplier Part Number
H10408-500R
Tube Material
Nitrile
Product Weight
0.29 lbs

Product Questions & Answers

hose says it's rated down to -40 degrees -- does that mean it'll hold up running hydraulic oil in real cold weather without getting stiff and cracking on me?
Question by: Duane W on Dec 6, 2025, 9:44 AM
Cold weather performance is one of the stronger points of this hose. The nitrile inner tube handles petroleum-based hydraulic oils well, and the -40 degree minimum working temperature means it stays functional in pretty serious winter conditions without the tube getting brittle or the cover cracking up on you. The neoprene outer cover holds up too, so you're not looking at a hose that's going to give you trouble just because temps dropped overnight.
Answer by: Customer Support on Dec 8, 2025, 9:01 AM
got a tight spot to snake this hose through. what’s the minimum bend radius on the H104 -8?
Question by: Bobby C on Mar 9, 2026, 11:46 AM
For the -8 dash size H104, the minimum bend radius is 7 inches, so you will want to keep your routing at or above that to avoid kinking or stressing the hose.
Answer by: Customer Support on Mar 10, 2026, 4:36 PM
