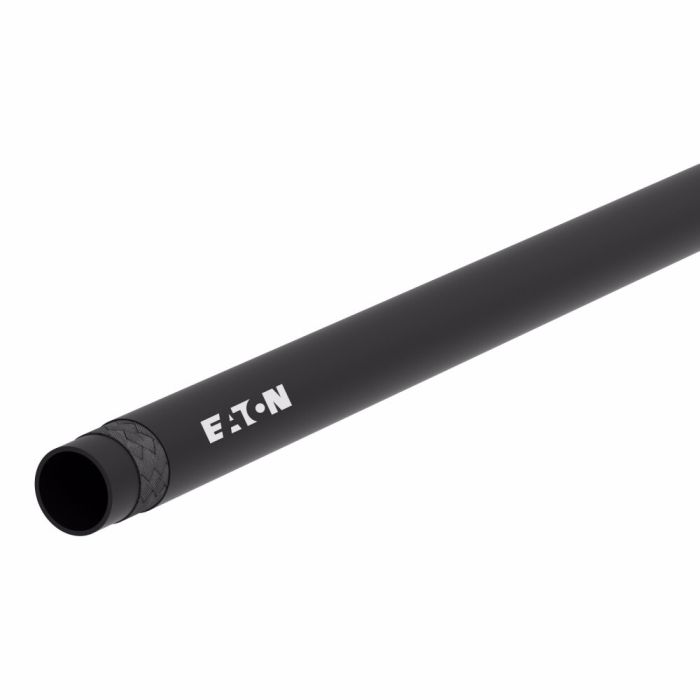

WEATHERHEAD H101 Hose. General Purpose IGH10104-250R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HS37	Application Air and multi purpose.	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material Chloroprene Rubber	Dash Size -4	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -40	Product Width 0.53	Qualified Hose Fittings 100 B	Reinforcement Material Polyester	Sub Brand Weatherhead	Supplier Part Number H10104-250R	Tube Material Nitrile	Product Weight 22.50 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot to snake this through. how tight can i bend this H101 hose without kinkin it

Question by: Hank S on Oct 12, 2025, 7:00 PM

For routing, the minimum bend radius is 3 inches. Staying at or above that bend radius helps keep the hose from kinking and supports longer service life.

Answer by: Customer Support on Oct 14, 2025, 8:01 AM

does this hose hold up when its running air lines in a shop that gets real cold in winter? asking cause we've had cheaper hoses crack on us before

Question by: Norm H on Jul 22, 2025, 2:54 PM

Cold temps shouldn't be a problem here. The H101 is rated down to -40 degrees, so even a drafty unheated shop in the dead of winter won't push it past its limits. The nitrile tube and chloroprene rubber cover both hold up at low temps without going brittle the way some cheaper hoses do.

Answer by: Customer Support on Jul 23, 2025, 9:36 PM
