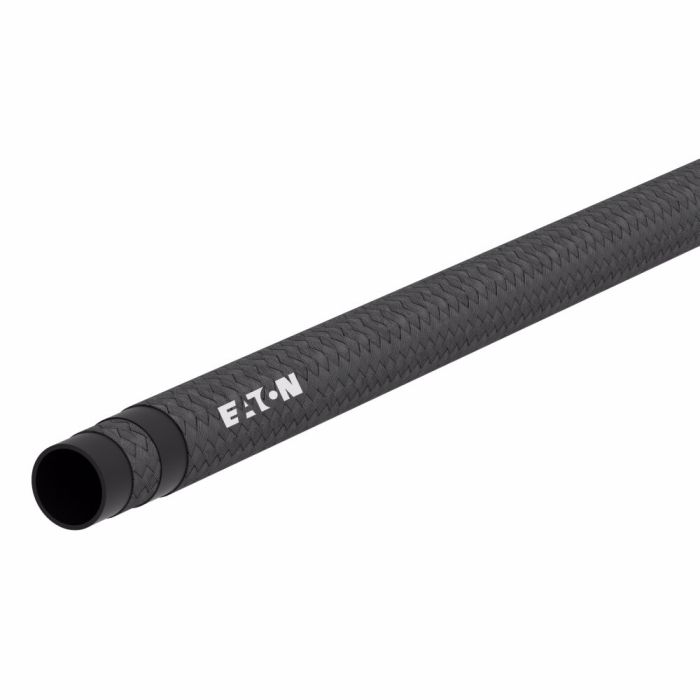

WEATHERHEAD H100 Hose. General Purpose

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1HA91	Application Gasoline, fuel and lubricating oils, air and water.	Certifications SAE J1402\|SAE J1942\|SAE J517	Color Black	Conductivity 30	Construction 2-ply braid	Cover Material Polyester	Dash Size -10	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 6	Minimum Bend Radius 6	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.91	Qualified Hose Fittings 100 B	Reinforcement Material Polyester	Sub Brand Weatherhead	Supplier Part Number H10010-250R	Tube Material Nitrile	Product Weight 42.50 lbs

Product Questions & Answers 1

Product Questions & Answers

got a piece of equipment that sees gas and oil, and the hose rubs on stuff a lot. is the H100 built for that kind of abuse?

Question by: Daryl M on May 29, 2025, 11:59 AM

For rough service, the H100 is built with a polyester cover aimed at abrasion resistance and a 2 ply braid reinforcement for strength. It is also listed for gasoline, fuel and lubricating oils, plus air and water, so it fits that mix of fluids.

Answer by: Customer Support on May 30, 2025, 2:21 PM
