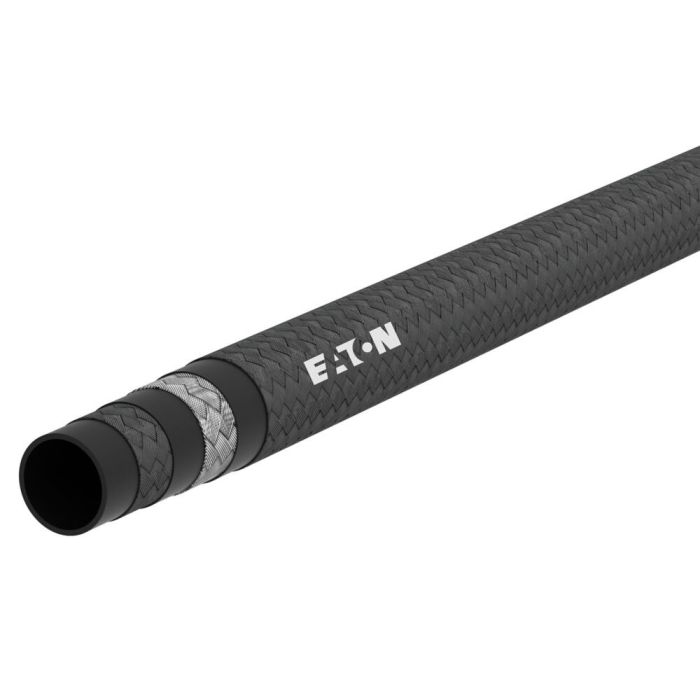

WEATHERHEAD H069 Truck Hose IGH06916-250R

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1HS36	Application Hydraulics, air and lubricating oil.	Certifications SAE J1402 Type-2\|SAE 100R5\|ABS	Color Black	Compliances DOT AII	Conductivity 30	Construction 3 Braid	Cover Material Polyester	Dash Size -16	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Impulse Cycle Life 150000 cycle	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 7.39	Minimum Bend Radius 7.39	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.23	Qualified Hose Fittings 069 E, 069 D, 247 N	Reinforcement Material Polyester and Wire	Sub Brand Weatherhead	Supplier Part Number H06916-250R	Tube Material Nitrile	Product Weight 0.46 lbs

Product Questions & Answers 2

Product Questions & Answers

what fittings are gonna work with this hose? got a truck application and want to make sure i get the right ones before i order

Question by: Rusty C on Jan 21, 2026, 8:02 AM

Three fitting series are confirmed compatible with this hose: 069 E, 069 D, and 247 N. Stick with one of those and you'll be in good shape. Using fittings outside that qualified list isn't recommended since fit and seal integrity could be compromised.

Answer by: Customer Support on Jan 22, 2026, 9:30 PM

got a tight spot to route hose on a truck, how sharp can this H069 bend without kinkin it

Question by: Wade J on Nov 3, 2025, 5:01 PM

For routing, the published minimum bend radius on the H069 is 7.39. Keeping your bends at or above that radius helps prevent kinking and protects the reinforcement.

Answer by: Customer Support on Nov 5, 2025, 12:04 PM
