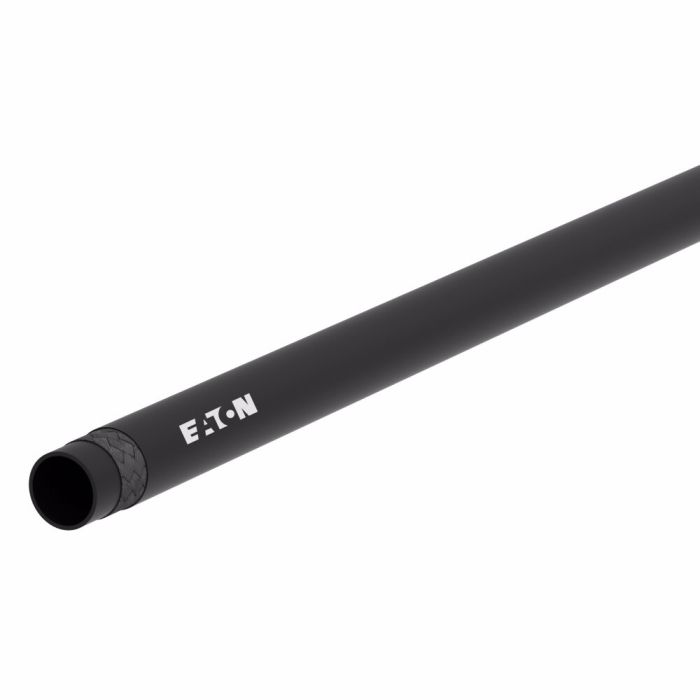

WEATHERHEAD H057Fuel Line Hose IGH05703-100R

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1HA71	Application Low pressure / high temperature fuel for passenger cars and light trucks, also small engine applications. Not intended for fuel injected applications.	Certifications SAE 30R7	Color Black	Conductivity 30	Construction 1 Ply Braid	Cover Material Neoprene	Dash Size -3	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 1.25	Minimum Bend Radius 1.25	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.43	Qualified Hose Fittings 057 B	Reinforcement Material Fiber	Sub Brand None	Supplier Part Number H05703-100R	Tube Material Nitrile	Product Weight 6.00 lbs

Product Questions & Answers 2

Product Questions & Answers

got a carbureted small engine on an old garden tractor, runs low pressure fuel – this hose gonna hold up to the heat comin off that motor?

Question by: Jean H on Feb 26, 2026, 7:33 AM

For carbureted low-pressure fuel setups, this hose handles that environment well. The nitrile tube is built to resist fuel degradation, and the neoprene cover holds up against abrasion and heat. It's rated down to -40 degrees on the cold end and carries a SAE 30R7 certification, which covers high-temperature fuel line duty. Just keep in mind it's not rated for fuel injected systems, so as long as you're staying carbureted you're in good shape.

Answer by: Customer Support on Feb 27, 2026, 7:50 AM

got an old rubber fuel hose on a small engine, would this H057 work or is it more for cars?

Question by: Larry W on Apr 24, 2025, 7:49 AM

For small engines and for passenger cars and light trucks, this hose is a good match as long as the fuel system is low pressure and runs hot. It uses a nitrile tube for fuel compatibility and a neoprene cover that holds up well to abrasion.

Answer by: Customer Support on Apr 26, 2025, 7:05 AM
