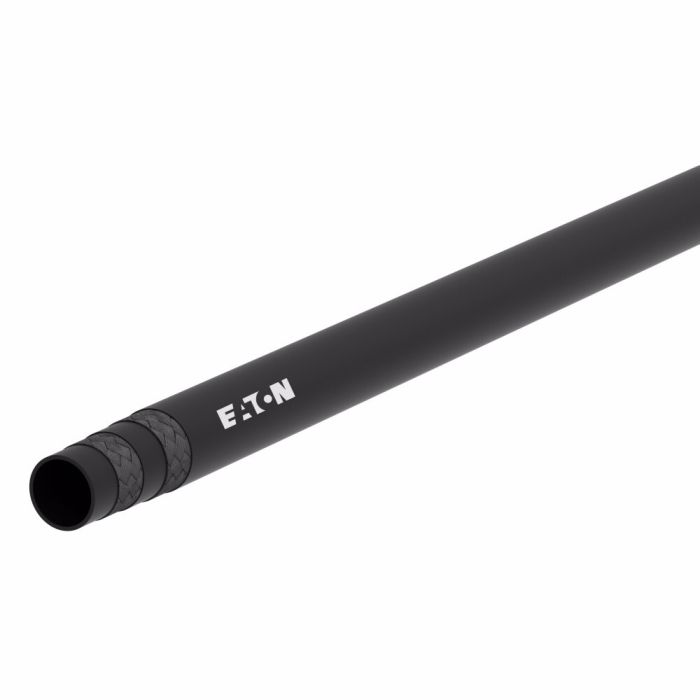

Weatherhead H017 Hose IGH01706-250R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1JH92, Alternate Part Number H01706-250R	Application Fuels and oils.	Certifications SAE J1942/1\|SAE 100R3	Color Black	Compliances MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material Neoprene	Dash Size -6	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3.94	Minimum Bend Radius 3.94	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.76	Qualified Hose Fittings U Series	Reinforcement Material Polyester	Sub Brand Weatherhead	Supplier Part Number H01706-250R	Tube Material Nitrile	Product Weight 50.00 lbs

Product Questions & Answers 3

Product Questions & Answers

got a fuel transfer setup and need a -6 hose, is this H017 meant for fuels and oils or is it more of a hydraulic-only deal

Question by: Kurt G on Jul 27, 2025, 12:03 PM

For fuel and oil service, the H017 is a good match. It is called out for fuels and oils, and it uses a nitrile tube with a neoprene cover.

Answer by: Customer Support on Jul 29, 2025, 8:14 AM

hose is rated for fuels and oils -- we run diesel hydraulic equipment pretty hard out in the field. will this hold up or is it more of a light-duty deal?

Question by: Clint R on May 10, 2025, 9:04 AM

Built around a nitrile tube and a neoprene cover, this hose is specifically listed for fuel and oil service. The 2-ply polyester braid reinforcement is what gives it the muscle to handle demanding conditions rather than light shop use. It carries SAE 100R3 and SAE J1942/1 certifications, and it's MSHA approved, which tells you it's been evaluated for serious working environments. Cold temps aren't a problem either since it's rated down to -40 degrees. For heavy field equipment running diesel and hydraulic oil, it's built for exactly that kind of punishment.

Answer by: Customer Support on May 11, 2025, 10:51 AM

What kind of stuff can this hose handle, like different fuels and oils?

Question by: Lance E on Jul 5, 2025, 4:42 PM

This hose works well with fuels and oils, making it suitable for various industrial applications.

Answer by: Customer Support on Jul 7, 2025, 6:42 AM
