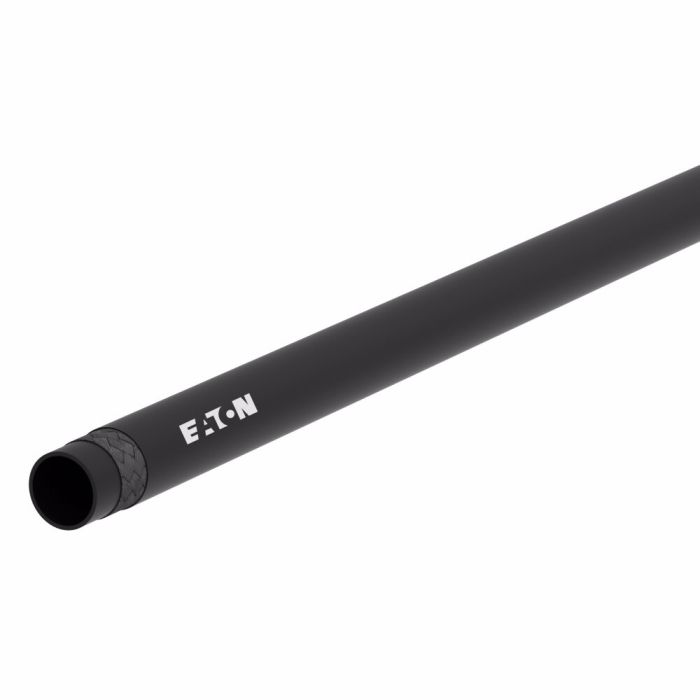

Weatherhead H009 Hose IGH00908-250R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1JB16	Application Air and multi purpose.	Certifications SAE 100R6\|SAE J1942/1	Color Black	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -8	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.80	Qualified Hose Fittings E, 009 H	Reinforcement Material Textile	Sub Brand Weatherhead	Supplier Part Number H00908-250R	Tube Material Synthetic Rubber	Product Weight 45.00 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of stuff can I run through this hose?

Question by: Cindy B on Sep 23, 2025, 9:53 PM

Considering its designed for air and multi-purpose applications, this hose is suitable for a variety of fluids. For specific fluid compatibility, it's best to review the fluid compatibility document available.

Answer by: Customer Support on Sep 25, 2025, 8:37 AM

got a tight spot to route it through. how sharp can you bend this H009 hose without kinkin it

Question by: Harold Y on Mar 2, 2026, 4:09 PM

For routing, the minimum bend radius on the Weatherhead H009 Hose is 4 inches. Staying at or above that bend radius helps keep the hose from being forced into too tight of a curve.

Answer by: Customer Support on Mar 4, 2026, 7:53 AM

hose says it meets SAE 100R6 and SAE J1942/1 -- does that mean it's safe to run air lines with it, or is that more of a general-purpose deal?

Question by: Diane B on Feb 16, 2026, 9:15 AM

Both certifications cover air and multi-purpose service, so running air through this hose is exactly what it's built for. The H009 is listed specifically for air and multi-purpose applications, and the SAE 100R6 rating confirms it's suited for that kind of low-to-medium pressure pneumatic work. The synthetic rubber tube and single-braid textile reinforcement are standard for that service type.

Answer by: Customer Support on Feb 18, 2026, 6:00 AM
