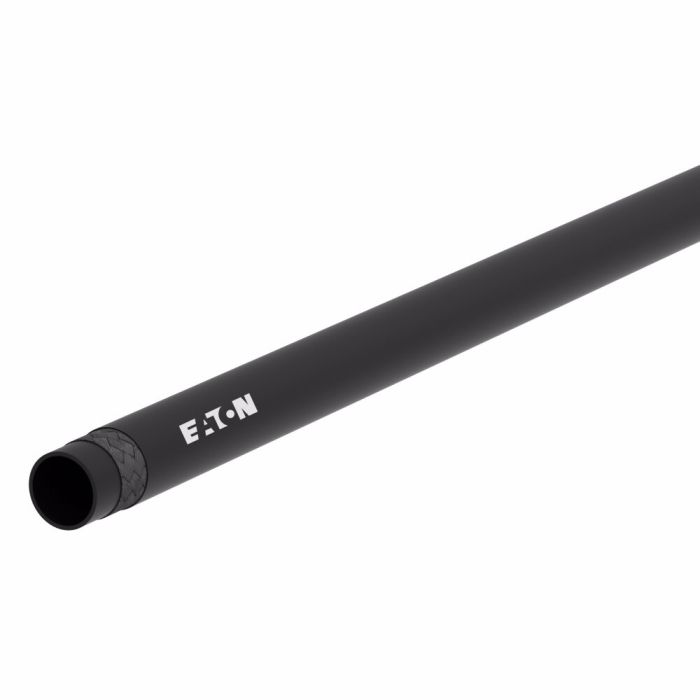

Weatherhead H009 Hose IGH00906-250R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1JB15	Application Air and multi purpose.	Certifications SAE 100R6\|SAE J1942/1	Color Black	Conductivity 30	Construction 1 Ply Braid	Cover Material Synthetic Rubber	Dash Size -6	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.65	Qualified Hose Fittings E, 009 H Series	Reinforcement Material Textile	Sub Brand Weatherhead	Supplier Part Number H00906-250R	Tube Material Synthetic Rubber	Product Weight 32.50 lbs

Product Questions & Answers 2

Product Questions & Answers

Need a tough air hose that won’t get chewed up quick. Is the H009 built for that kind of work?

Question by: Billy S on Feb 9, 2026, 9:10 PM

For rough day to day use, the H009 is built with a synthetic rubber tube and cover plus standard abrasion resistance, and it uses a 1 ply braid with textile reinforcement to hold up under harsh operating conditions.

Answer by: Customer Support on Feb 11, 2026, 5:49 PM

What kind of fittings work with this hose?

Question by: Earl W on Jul 29, 2025, 9:24 AM

The E and 009 H Series hose fittings are qualified for use with the Weatherhead H009 hose.

Answer by: Customer Support on Jul 31, 2025, 6:45 AM
