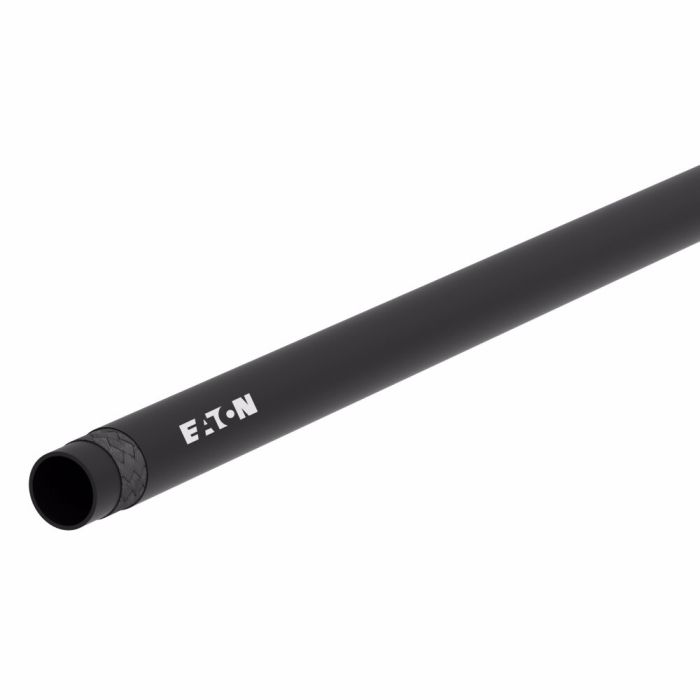

WEATHERHEAD H338 Air Brake Hose IGEC03806-250R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HB32, Alternate Part Number C1KY60	Application Tractor to trailer, axle chamber and tractor service air break lines.	Certifications SAE J1402A\|SAE J1402	Color Black	Compliances DOT FMVSS 106\|DOT AII	Conductivity 30	Construction 1 Ply Braid	Cover Material EPDM	Cover Style Perforated	Dash Size -6	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Light weight to improve hose flexibility\|Maximum durability under harsh operating conditions\|High quality proprietary blended nylon materials	ICC Hoses and Flexible Tubes	Impulse Cycle Life 1000000 cycle	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 1.75	Minimum Bend Radius 1.75	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.78	Qualified Hose Fittings 338 P, 338 B	Reinforcement Material Polyester	Sub Brand None	Supplier Part Number EC03806-250R	Tube Material EPDM	Product Weight 0.21 lbs

Product Questions & Answers 3

Product Questions & Answers

running this on a tractor-trailer setup, will it hold up to the -40 cold we get in the winters out here? need something that aint gonna stiffen up and crack on me

Question by: Jerry J on Jun 30, 2025, 2:02 PM

Cold weather performance is built into this hose from the ground up. The minimum working temperature is rated at -40F, so it is engineered to stay flexible and functional in the kind of deep cold that causes cheaper hoses to get brittle. The EPDM tube and cover materials hold up well in those conditions, and the lightweight nylon construction helps it flex without fighting you during installation or when lines shift under load.

Answer by: Customer Support on Jul 2, 2025, 6:53 AM

Is this hose okay for connecting the air brakes on my tractor-trailer?

Question by: Phil B on Sep 15, 2025, 9:23 PM

Yes it is. This Weatherhead H338 air brake hose is specifically designed for tractor to trailer, axle chamber, and tractor service air brake lines.

Answer by: Customer Support on Sep 17, 2025, 10:44 AM

got a tractor to trailer setup, is this H338 hose meant for the service air brake line or is it for something else

Question by: Joyce C on Jun 8, 2025, 8:44 PM

For tractor to trailer service air brake lines, tractor service air brake lines, and axle chamber lines, the H338 is a match for those common air brake runs. It is built as an air brake hose with DOT FMVSS 106 and DOT AII compliance, and it also meets SAE J1402A and SAE J1402.

Answer by: Customer Support on Jun 10, 2025, 6:37 AM
