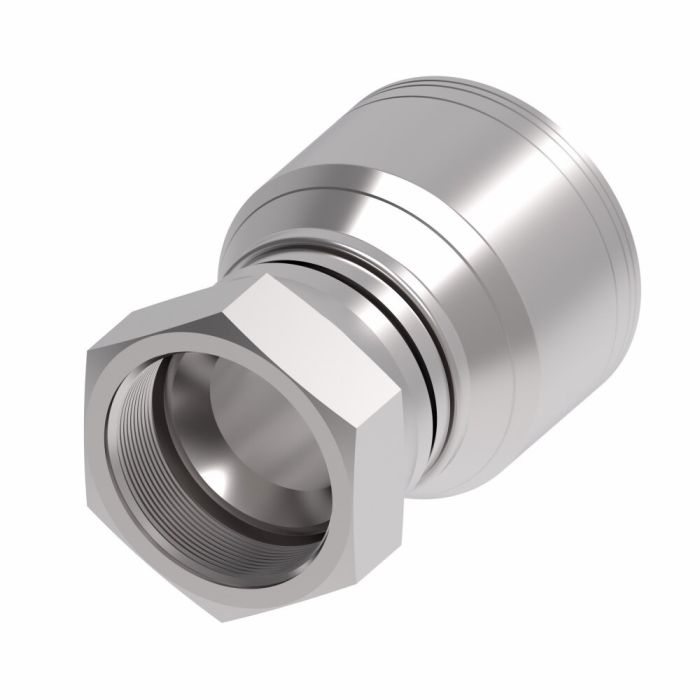

Danfoss / Eaton Hose End R2 MM SAE 37 Swivel IG24Z-624

Specifications

Application General purpose low and medium pressure hydraulics. Use H277 or H435 where shock hazards exist	Certifications SAE J1176	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	End Gender 1 13553	End Type 1 JIC 37	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hex Size 2 2.25	Hose Dash Size -24	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.70	Sub Brand Weatherhead	Supplier Part Number 24Z-624	Product Weight 1.91 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to replace a 24Z-624, is this the same Weatherhead hose end or am I lookin at the wrong one

Question by: Gene H on May 9, 2025, 1:58 PM

Match it up by part number. This item is the Eaton Weatherhead hose end with supplier part number 24Z-624 (SKU IG24Z-624), built as an R2 MM hose end with a JIC 37 degree female swivel.

Answer by: Customer Support on May 10, 2025, 4:03 PM

fitting says it works with H277 or H435 hose where shock hazards exist -- does that mean it ain't rated for other hoses in those same conditions, or is that just a recommendation?

Question by: Dean W on Jan 18, 2026, 4:45 PM

The shock hazard callout is specific to H277 and H435 hoses. For general low and medium pressure hydraulic work without shock concerns, this fitting covers a broader range of R2 hose applications. When shock loads are part of the picture, pairing it with one of those two hose types is what the engineering behind this assembly was built around. Staying within that guidance keeps the assembly performing the way it was intended.

Answer by: Customer Support on Jan 20, 2026, 10:25 AM
