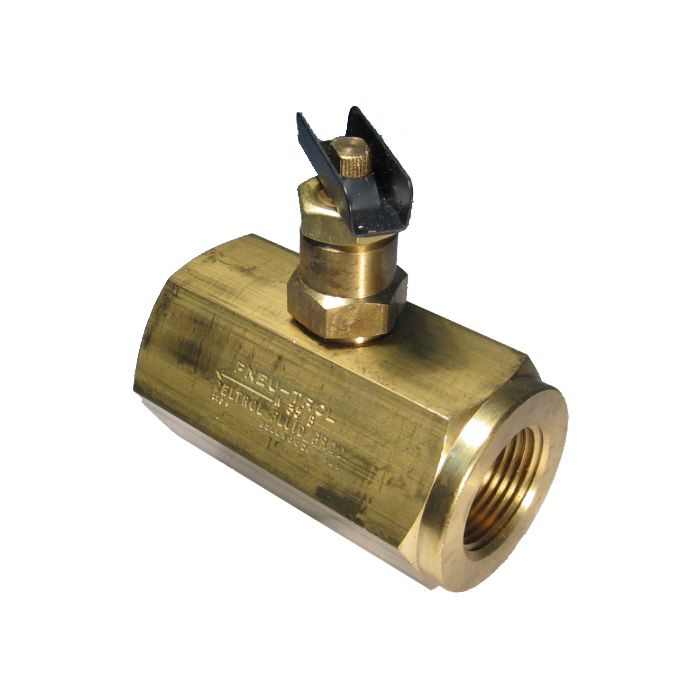

Inline Needle Valves, For Hydraulic (Up To 34 GPM) & Pneumatic Service
Application |
Controlled flow in both directions. Flow adjustment can be made under pressure. Setting can be locked with locknut. Brass valves for use in pneumatic systems and lower pressure hydraulic systems. Steel valves for use in hydraulic systems. Pressure ratings in tables are for non-shock service. |
Features |
Wide adjustment range due to fine thread. Tamperproof adjustment key is standard. Knurled knob is optional. Locknut is standard. |
Materials |
Body: Available in Brass, carbon steel or stainless steel. Needle: Brass on brass valves, 416 stainless steel on steel and stainless steel valves. O-Ring Packing: Viton®. Backup Washer: Teflon®. Optional Knob: Aluminum. Tamper proof Key: Cadmium plated steel. |
Temperature Range |
-15°F to 400°F. |
Products
| Model Number | Size | Thread 1 | Materials | Maximum Operating Pressure | Rated Flow | CV Factor | A | B | E | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|
| N20B | 1/4 | 1/4-18 NPT | Brass | 2000 | 7 | 0.4300 | 0.88 | 1 | 2 |
|
|
| N25B | 3/8 | 3/8-18 NPT | Brass | 2000 | 13.5 | 0.7800 | 1.06 | 1.81 | 2.25 |
|
