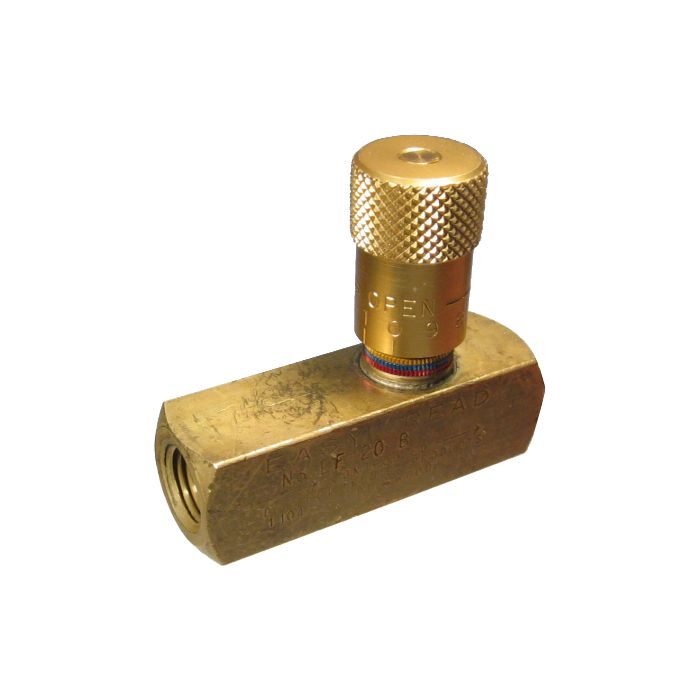

Brass Inline Easy Read Flow Control Valve, Female 3/4-14 NPT Ports, Up to 20.00 GPM & 2000.00 PSI

A 2.19	Adjustment No	B 1.38	C 3.75	Check Valve No	CV Factor 1.43	Brand Deltrol Fluid Products	Brand Deltrol Fluid Products	Pack Size 1.00	UOM EA	Materials Brass	Maximum Operating Pressure 2000	Rated Flow 20	Rated Flow 20	Size 3/4	Supplier Part Number EF35B	Thread 1 3/4-14 NPT	Alternate Part Numbers Alternate Part Number C1CP17, Alternate Part Number MI-00278642, Alternate Part Number MINO-00223F25044	Product Weight 1.86 lbs

Product Questions & Answers 2

Product Questions & Answers

got a cylinder that needs to slow down one way but return quick, is that what this valve does?

Question by: Janet R on Oct 18, 2025, 7:42 AM

For a setup like that, it is meant to meter flow in one direction and allow free flow the other way. That gives you controlled speed one way, with an easier return in the reverse direction.

Answer by: Customer Support on Oct 19, 2025, 7:29 PM

What size wrench do I need to adjust the flow on this thing? Seems like it'd be easier than fiddling with that little knob.

Question by: Jimmy E on Apr 15, 2025, 6:51 PM

This valve is designed so you can adjust the flow under pressure just using the metal knob. The color coding and numerical readout on it let you make pretty precise adjustments. Once you get it where you want it, there's a set screw to lock it in place.

Answer by: Customer Support on Apr 17, 2025, 2:44 PM

Similar Products

Model Number	Size	Thread 1	Materials	Maximum Operating Pressure	Rated Flow	CV Factor	A	B	C
EF25B	3/8	3/8-18 NPT	Brass	2000	10	0.7600	1.63	1	2.88
EF25S	3/8	3/8-18 NPT	Steel	5000	10	0.7600	1.63	1	2.88
EF30S	1/2	1/2-14 NPT	Steel	5000	12	0.9300	1.97	1.63	3.44
EF10B	1/8	1/8-27 NPT	Brass	2000	3	0.2800	1.28	0.63	1.94
EF10S	1/8	1/8-27 NPT	Steel	5000	3	0.2800	1.28	0.63	1.94
EF20B	1/4	1/4-18 NPT	Brass	2000	6	0.5300	1.41	0.75	2.41
EF20S	1/4	1/4-18 NPT	Steel	5000	6	0.5300	1.41	0.75	2.41
EF30B	1/2	1/2-14 NPT	Brass	2000	12	0.9300	1.97	1.63	3.44
EF35B	3/4	3/4-14 NPT	Brass	2000	20	1.4300	2.19	1.38	3.75
EF35S	3/4	3/4-14 NPT	Steel	5000	20	1.4300	2.19	1.38	3.75
