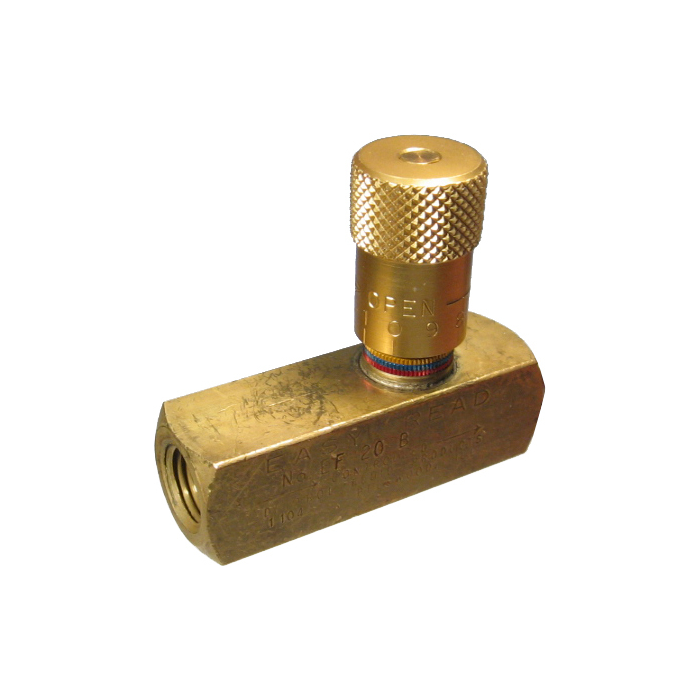

Steel Inline Easy Read Flow Control Valve, Female 1/8-27 NPT Ports, Up to 3.00 GPM & 5000.00 PSI

A 1.28	Adjustment No	B 0.63	C 1.94	Check Valve No	CV Factor 0.28	Brand Deltrol Fluid Products	Brand Deltrol Fluid Products	Pack Size 1.00	UOM EA	Materials Steel	Maximum Operating Pressure 5000	Rated Flow 3	Rated Flow 3	Size 1/8	Supplier Part Number EF10S	Thread 1 1/8-27 NPT	Alternate Part Numbers Alternate Part Number C1GG80, Alternate Part Number MI-00279190, Alternate Part Number MINO-00223F25503	Product Weight 0.24 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot on my hydraulic line. is this the kind where you can tweak the flow while the system’s still pressurized, then lock it in?

Question by: Denise Y on Nov 29, 2025, 2:58 PM

Adjustment can be made under pressure on this valve, and once you have the flow where you want it you can lock the setting with the set screw. The easy read color bands and numeric readout are there to help you come back to the same setting later.

Answer by: Customer Support on Nov 30, 2025, 7:12 PM

What kind of fluid can I run through this valve? I'm working with a hydraulic setup.

Question by: Carl F on Dec 10, 2025, 9:53 PM

Since the body is made of steel, it's best suited for hydraulic systems. Brass valves are better for pneumatic or lower-pressure hydraulic setups.

Answer by: Customer Support on Dec 12, 2025, 1:20 PM

Similar Products

Model Number	Size	Thread 1	Materials	Maximum Operating Pressure	Rated Flow	CV Factor	A	B	C
EF25B	3/8	3/8-18 NPT	Brass	2000	10	0.7600	1.63	1	2.88
EF25S	3/8	3/8-18 NPT	Steel	5000	10	0.7600	1.63	1	2.88
EF30S	1/2	1/2-14 NPT	Steel	5000	12	0.9300	1.97	1.63	3.44
EF10B	1/8	1/8-27 NPT	Brass	2000	3	0.2800	1.28	0.63	1.94
EF10S	1/8	1/8-27 NPT	Steel	5000	3	0.2800	1.28	0.63	1.94
EF20B	1/4	1/4-18 NPT	Brass	2000	6	0.5300	1.41	0.75	2.41
EF20S	1/4	1/4-18 NPT	Steel	5000	6	0.5300	1.41	0.75	2.41
EF30B	1/2	1/2-14 NPT	Brass	2000	12	0.9300	1.97	1.63	3.44
EF35B	3/4	3/4-14 NPT	Brass	2000	20	1.4300	2.19	1.38	3.75
EF35S	3/4	3/4-14 NPT	Steel	5000	20	1.4300	2.19	1.38	3.75
