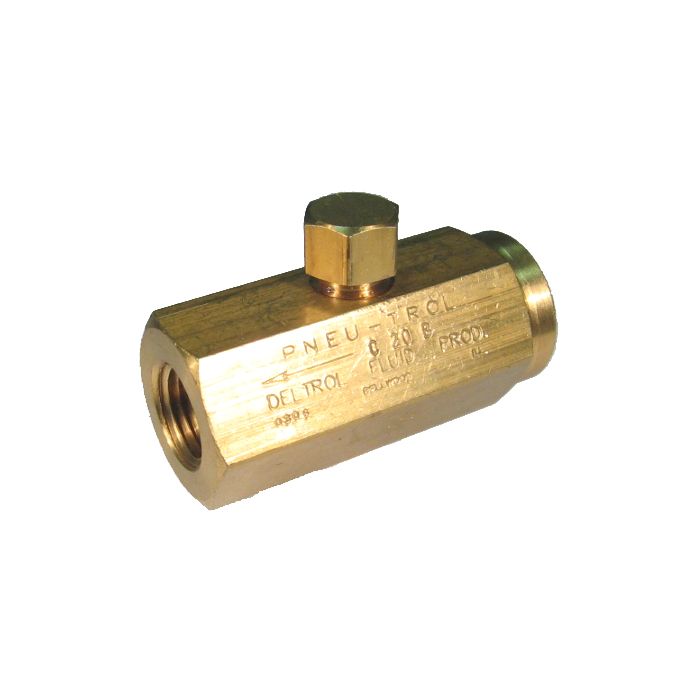

Inline Check Valves, For Hydraulic (Up To 12 GPM) & Pneumatic Service
Application |
Free flow is permitted in the direction of the arrow; positive check in the opposite direction. Brass valves for use in pneumatic systems and lower pressure hydraulic systems. Steel valves for use in hydraulic systems. Pressure ratings in tables are for non-shock service. |
Features |
Low pressure differential required to open & close. |
Materials |
Body: Available in Brass, Carbon Steel or Stainless Steel. |
Products
| Model Number | Size | Thread 1 | Materials | Maximum Operating Pressure | Rated Flow | CV Factor | Cracking Pressure (psi) | A | C | E | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C20B | 1/4 | 1/4-18 NPT | Brass | 2000 | 3 | 0.5400 | 1 to 2.5 | 0.88 | 0.36 | 2 |
|
|
| C30B | 1/2 | 1/2-14 NPT | Brass | 2000 | 8 | 1.4700 | 1 to 2.5 | 1.31 | 0.47 | 2.66 |
|
