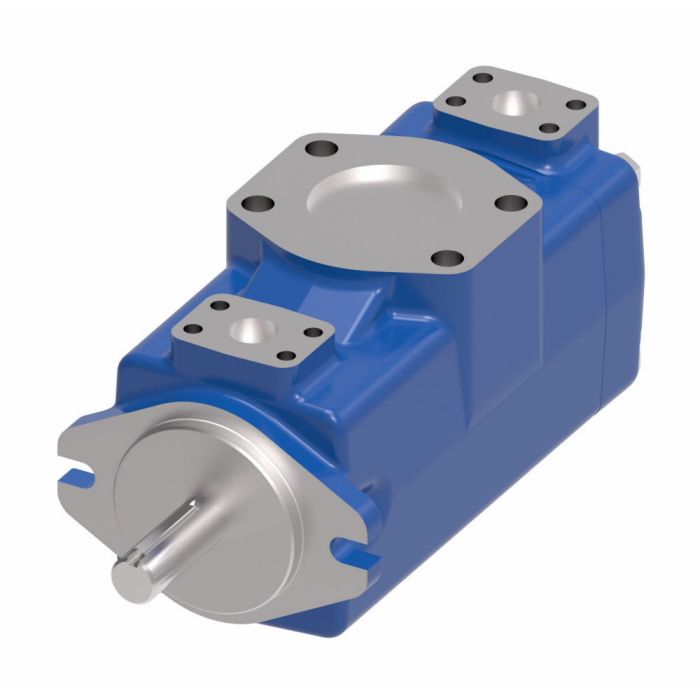

main product photo

Hydraulic Double Vane Pump, VMQ Series Double Pump, 14.65 cu in/rev Front, 1.58 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/2 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear, CW Rotation

Ask A Question
Adapter Mount Orientation
None
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Configuration
33
Design Code
32
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump
Front Displacement
14.65
Front Flange Orientation
None
Front Outlet Port Type
None
Geometric Displacement
25
Identification
None
Inlet Connectors
45 DEG. CCW FROM INLET PORT
Mfg. Name
Vickers
Mount
2-Bolt SAE C
Mount
2-Bolt SAE C
Output Shaft Coupling
None
Ports
SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear
Ports
SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear
Rear Displacement
1.58
Rear Outlet Port Connections
45° CCW To Inlet Port
Rotation
CW
Seal Material
Buna-N
Series
VMQ
Shaft
1-1/2 Straight Keyed
Shaft
1-1/2 Straight Keyed
Shaft Seals
Single
Special Features
None
Supplier Part Number
713-0091-032
Thru Drive
No
Vane Function Type
Pump
Alternate Part Numbers
Alternate Part Number C1MZ72
Product Weight
160.00 lbs
Product Questions & Answers 2

Product Questions & Answers

both circuits run off the same shaft on this thing, right? trying to figure out if the 14.65 up front and the 1.58 in the rear are independent sections or if it's some kind of blended output
Question by: Lance P on Nov 20, 2025, 2:09 PM
Both sections share a single drive shaft and turn together, but they put out flow independently through separate outlet ports. The front section displaces 14.65 cubic inches per revolution and the rear puts out 1.58 cubic inches per revolution. Each has its own outlet, sized differently, so you can route them to separate circuits. That setup is pretty common when you need one high-flow circuit and a lower-flow auxiliary circuit running off the same power source.
Answer by: Customer Support on Nov 22, 2025, 12:01 PM
Will this pump work okay on a dump truck application?
Question by: Donna W on Apr 9, 2025, 6:16 PM
Application-wise, this double vane pump can definitely handle dump truck setups, along with metal cutting, wheel loaders, and plastic injection molding.
Answer by: Customer Support on Apr 11, 2025, 8:36 AM

Similar Products

Part Number Displacement Mount Shaft Ports Rotation Features Rear Displacement Front Displacement Price Buy Now
02-137210-2 2-Bolt SAE B 7/8 Straight Keyed SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear CW Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency 2.8 4.1
02-142081-F 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear CCW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 1.67 11.8
428649-5 2-Bolt SAE B 13T SAE B Splined SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear CCW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 2.8 4.12
596631-7 2-Bolt SAE B 13T SAE B Splined SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear CCW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 2.8 4.12
711-0251-032 2-Bolt SAE B 15T SAE-BB Splined SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 1.96 2.75
712-0156-032 2-Bolt SAE C 1-1/4 Straight Keyed SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 4.33 6.83
712-0157-032 2-Bolt SAE C 1-1/4 Straight Keyed SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear CCW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 4.33 6.83
713-0068-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 4.88 14.65
713-0091-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 1.58 14.65
714-0066-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CCW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 6.83 8.54
714-0067-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 6.83 8.54
714-0080-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 7.63 13.12
714-0081-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CCW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 7.63 13.12
02-142081-1 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear CW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 1.67 11.8
