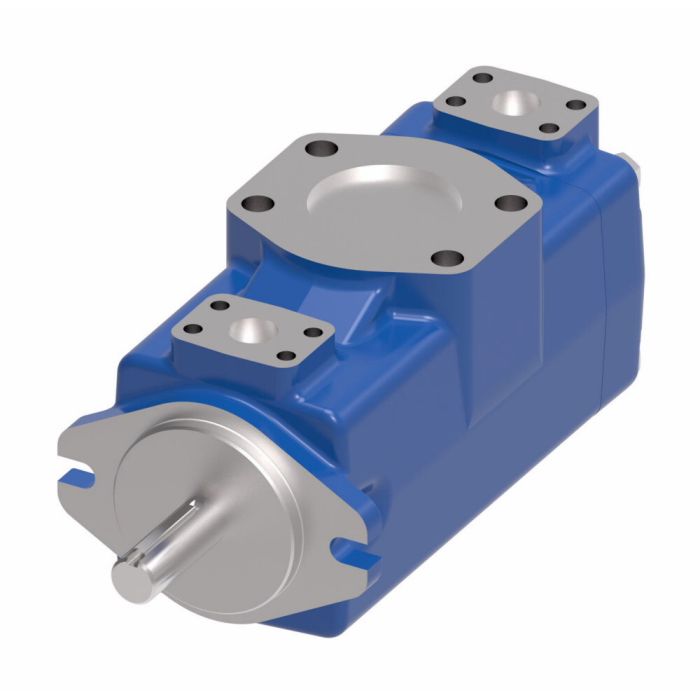

main product photo

Hydraulic Double Vane Pump, VMQ Series Double Pump, 6.83 cu in/rev Front, 4.33 cu in/rev Rear, 2-Bolt SAE C Mounting Flange, 1-1/4 Straight Keyed Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear, CCW Rotation

Ask A Question
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Configuration
33
Design Code
32
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump
Front Displacement
6.83
Identification
None
Mfg. Name
Vickers
Mount
2-Bolt SAE C
Mount
2-Bolt SAE C
Output Shaft Coupling
None
Ports
SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear
Ports
SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear
Rear Displacement
4.33
Rear Outlet Port Connections
45° CW To Inlet Port
Rotation
CCW
Seal Material
Buna-N
Series
VMQ
Shaft
1-1/4 Straight Keyed
Shaft
1-1/4 Straight Keyed
Shaft Seals
Single
Special Features
None
Supplier Part Number
712-0157-032
Thru Drive
No
Vane Function Type
Pump
Alternate Part Numbers
Alternate Part Number C1KK72
Product Weight
110.00 lbs
Product Questions & Answers 1

Product Questions & Answers

both sections on this pump turning CCW, or just one of em? trying to make sure it'll work with my setup before i order
Question by: Merle R on Jul 25, 2025, 3:47 PM
Both the front and rear sections run counterclockwise on this pump. The whole unit is rated for CCW rotation, so if your drive shaft spins that direction, the pump will work with your existing setup without any modifications.
Answer by: Customer Support on Jul 27, 2025, 10:25 AM

Similar Products

Part Number Displacement Mount Shaft Ports Rotation Features Rear Displacement Front Displacement Price Buy Now
02-137210-2 2-Bolt SAE B 7/8 Straight Keyed SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear CW Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency 2.8 4.1
02-142081-F 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear CCW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 1.67 11.8
428649-5 2-Bolt SAE B 13T SAE B Splined SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear CCW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 2.8 4.12
596631-7 2-Bolt SAE B 13T SAE B Splined SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear CCW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 2.8 4.12
711-0251-032 2-Bolt SAE B 15T SAE-BB Splined SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 1.96 2.75
712-0156-032 2-Bolt SAE C 1-1/4 Straight Keyed SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 4.33 6.83
712-0157-032 2-Bolt SAE C 1-1/4 Straight Keyed SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear CCW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 4.33 6.83
713-0068-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 4.88 14.65
713-0091-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 1.58 14.65
714-0066-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CCW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 6.83 8.54
714-0067-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 6.83 8.54
714-0080-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 7.63 13.12
714-0081-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CCW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 7.63 13.12
02-142081-1 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear CW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 1.67 11.8
