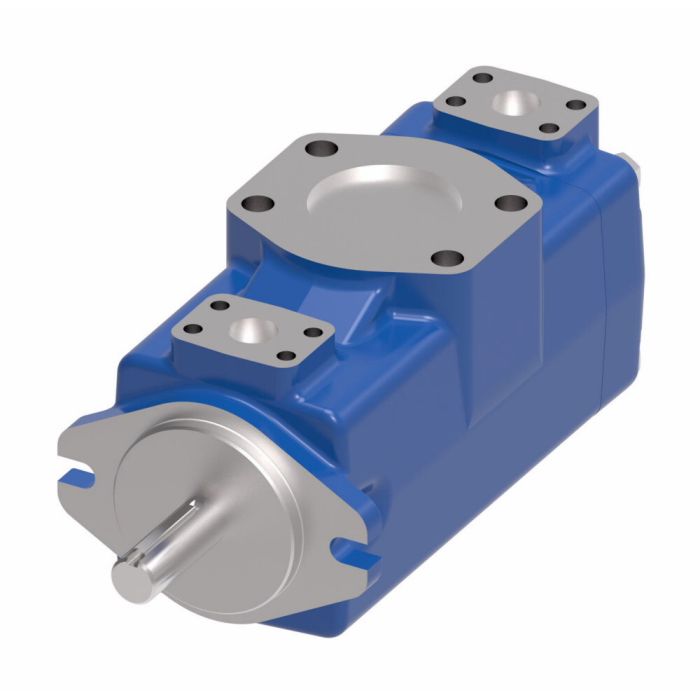

Hydraulic Double Vane Pump, VMQ Series Double Pump, 2.75 cu in/rev Front, 1.96 cu in/rev Rear, 2-Bolt SAE B Mounting Flange, 15T SAE-BB Splined Shaft, SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear, CW Rotation

Ask A Question
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Configuration
33
Design Code
32
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump
Front Displacement
2.75
Identification
None
Mfg. Name
Vickers
Mount
2-Bolt SAE B
Mount
2-Bolt SAE B
Output Shaft Coupling
None
Ports
SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear
Ports
SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear
Rear Displacement
1.96
Rear Outlet Port Connections
90° CCW To Inlet Port
Rotation
CW
Seal Material
Buna-N
Series
VMQ
Shaft
15T SAE-BB Splined
Shaft
15T SAE-BB Splined
Shaft Seals
Single
Special Features
None
Supplier Part Number
711-0251-032
Thru Drive
No
Vane Function Type
Pump
Alternate Part Numbers
Alternate Part Number C1KK70, Alternate Part Number VMQ22525S045032A00200AAABFANR00A
Product Weight
81.00 lbs
Product Questions & Answers 2

Product Questions & Answers

Will this pump work alright on my dump truck? I'm looking to replace the one that's on there now.
Question by: Pete C on Sep 15, 2025, 6:10 PM
For dump truck applications, this Eaton Vickers VMQ series vane pump should be suitable. Just double-check that the specs, particularly the 2.75 cu in/rev front and 1.96 cu in/rev rear displacement, are compatible with your existing system.
Answer by: Customer Support on Sep 17, 2025, 4:19 PM
what's the displacement on the front and rear sections of this double pump?
Question by: Brett C on Mar 14, 2026, 3:54 PM
Front section pulls 2.75 cubic inches per revolution, rear section runs at 1.96 cubic inches per revolution. Both sections share a single inlet, with separate outlets for each, so you get two independent flow circuits off one pump body. That setup is real common on equipment where you're running two hydraulic functions that don't need to be tied together.
Answer by: Customer Support on Mar 15, 2026, 7:32 PM

Similar Products

Part Number Displacement Mount Shaft Ports Rotation Features Rear Displacement Front Displacement Price Buy Now
02-137210-2 2-Bolt SAE B 7/8 Straight Keyed SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear CW Innovative intra-vane cartridge design|Reduces noise|Excellent volumetric efficiency 2.8 4.1
02-142081-F 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear CCW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 1.67 11.8
428649-5 2-Bolt SAE B 13T SAE B Splined SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear CCW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 2.8 4.12
596631-7 2-Bolt SAE B 13T SAE B Splined SAE 4-Bolt Flange, Inlet 2-1/2, Outlets 1 Front 3/4 Rear CCW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 2.8 4.12
711-0251-032 2-Bolt SAE B 15T SAE-BB Splined SAE 4-Bolt Flange, Inlet 3, Outlets 1 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 1.96 2.75
712-0156-032 2-Bolt SAE C 1-1/4 Straight Keyed SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 4.33 6.83
712-0157-032 2-Bolt SAE C 1-1/4 Straight Keyed SAE 4-Bolt Flange, Inlet 3, Outlets 1-1/4 Front 1 Rear CCW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 4.33 6.83
713-0068-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 4.88 14.65
713-0091-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 1 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 1.58 14.65
714-0066-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CCW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 6.83 8.54
714-0067-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 6.83 8.54
714-0080-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 7.63 13.12
714-0081-032 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 4, Outlets 1-1/2 Front 1-1/4 Rear CCW Highest pressures, lowest noise|Unique wafer plate design|Single, double or triple pump 7.63 13.12
02-142081-1 2-Bolt SAE C 1-1/2 Straight Keyed SAE 4-Bolt Flange, Inlet 3-1/2, Outlets 1-1/2 Front 3/4 Rear CW Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications 1.67 11.8
