Hydra Lock-Jaw Pullers

Group Description

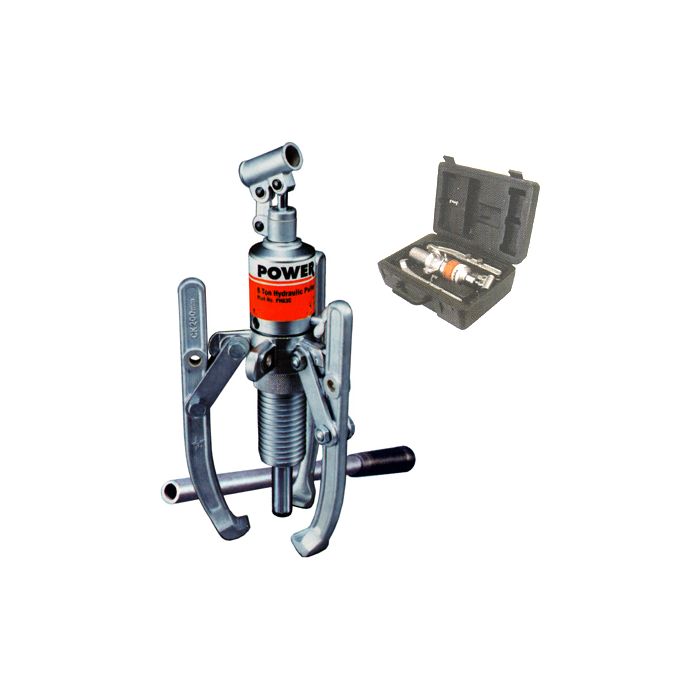

These pullers are ideal for pulling a wide variety of press-fitted parts including bushings, bearings, wheels, gears and pulleys. Applications can be found in a wide variety of industries as well. Grip-O-Matic® pullers have been rigorously tested for top performance and reliability. PH82K is a complete pulling system which includes a hydraulic power module, 2-way puller head, jaws, legs and bearing splitter attachment; all contained in a convenient carrying case.

Features

You get the world’s most copied puller design; the harder the pulling force, the tighter the jaws grip for secure holding force • Power Team pullers are tested for top performance and reliability at maximum capacity and jaw spread • Removing a wide variety of gears, bearings, bushings, pulleys and other press-fitted parts becomes a routine task • Easily metered release valve control knob • Spring loaded live centering cone • Bladder type oil reservoir • Rapid adjustment • Use with 2 or 3 jaws • Supplied with a sturdy storage/carrying case • Features Power Team’s exclusive Marathon Limited Lifetime Warranty.

Products

Model Number	Capacity (tons)	Jaws Reach	Dimensions
PH113C	15	9	A=0.56 B=0.38 C=1.13 D=3.25 E=1.13
PH303C	30	14.75	A=1.06 B=1.44 C=1.5 D=6.69 E=2.13 F=5/8-18 UNF
PH83C	8	7.5	A=0.44 B=0.38 C=1.00 D=3.25 E=1.13
