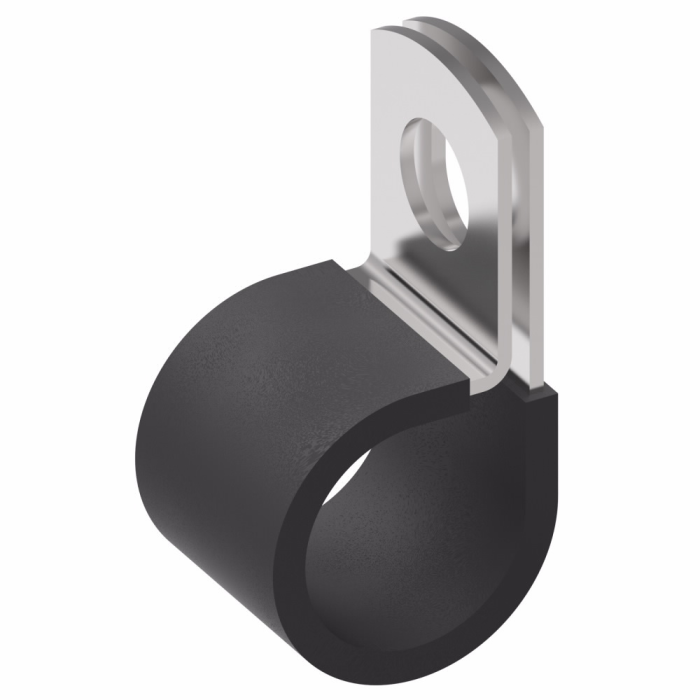

Hose Support Clamp, 1.50 Inch Closed Clamp ID

Clamp I.D. 1.50	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Hole Dia. 0.53	Supplier Part Number CSM-100	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1CB38, Alternate Part Number CSM-100, Alternate Part Number FMC239-8852-007, Alternate Part Number MI-00331576, Alternate Part Number MINO-00015F71916, Alternate Part Number T-LVZ-24	Product Weight 0.12 lbs

Product Questions & Answers 5

Product Questions & Answers

What size hose is this clamp designed for? Just want to make sure it's gonna be the right fit.

Question by: Daryl P on Dec 26, 2025, 8:45 AM

This clamp fits hoses with a 1.5-inch outer diameter.

Answer by: Customer Support on Dec 27, 2025, 4:25 PM

got some hose runs going pretty far across the machine bay and they keep sagging and rubbing against the frame. would something like this hold up for that kind of setup?

Question by: Roger L on Nov 17, 2025, 4:59 PM

Long runs are exactly what these clamps are made for. The vinyl coating on the steel body keeps the hose from chafing against the mount point, and the closed 1.5 inch ID gives it a secure hold without putting stress on the hose wall. The lining is also rated to handle high ambient temperatures, so heat in the work area shouldn't be a problem.

Answer by: Customer Support on Nov 18, 2025, 8:23 PM

trying to tidy up a long run of hose, would this clamp keep it from rubbing through where it touches the frame?

Question by: Tommy M on May 7, 2025, 11:00 AM

For longer hose runs, the vinyl-coated steel and the lined interior are meant to support the hose while helping prevent chafing, exposure, and damage from rubbing points.

Answer by: Customer Support on May 8, 2025, 7:33 PM

these clamps got a vinyl coating on em, will that hold up if the ambient temps get pretty high around the hose runs?

Question by: Tony J on Mar 6, 2026, 9:05 AM

The vinyl lining on these clamps is built to handle elevated ambient temperatures, so heat in the surrounding environment won't cause it to break down prematurely. That coating is what keeps the clamp from chafing or wearing into the hose over time, and it holds up well in warm industrial settings.

Answer by: Customer Support on Mar 8, 2026, 6:41 AM

What size hole do I need to drill to mount this clamp?

Question by: Phil H on Jan 17, 2026, 3:45 PM

You'll need a hole with a 0.531-inch diameter for mounting.

Answer by: Customer Support on Jan 18, 2026, 9:06 PM

Similar Products

Model Number	Clamp I.D.	Hole Dia.
900729-10	1.5	0.531
900729-14	2.25	0.531
900729-23	1	0.406
900729-8	1.06	0.406
900729-01	0.44	0.406
900729-11	1.56	0.531
900729-12	1.75	0.531
900729-13	2	0.531
900729-15	2.75	0.531
900729-16	2.88	0.531
900729-17	3.56	0.531
900729-18	0.25	0.406
900729-2	0.56	0.406
900729-21	0.63	0.406
900729-24	1.25	0.531
900729-27	1.19	0.531
900729-3	0.69	0.406
900729-30	2.5	0.531
900729-4	0.75	0.406
900729-5	0.81	0.406
900729-6	0.94	0.406
900729-9	1.13	0.531
900729-1	0.5	0.406
