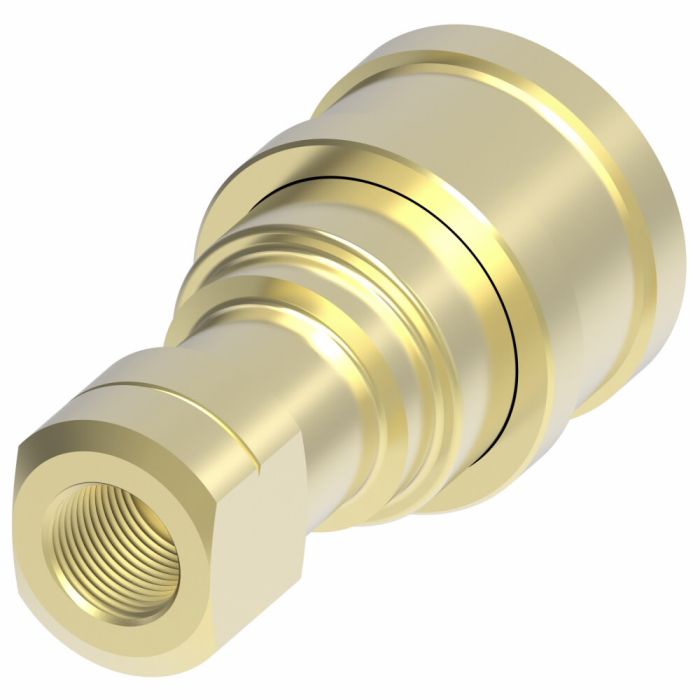

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -16 Coupling, 1 - 11-1/2 Female NPT

A
4.13
Air Inclusion Max
18.00 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
B
2.61
Coupling Size
-16
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
1
End Size 2
1
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
16.90 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
B8HP36
Thread 1
1 - 11-1/2
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KY55
Product Weight
2.43 lbs

Product Questions & Answers

what all seal options come with this coupling, and does the standard one hold up alright in hydraulic oil applications?
Question by: Janice H on Dec 11, 2025, 6:16 AM
Buna-N is the seal that comes standard, and it handles hydraulic oil well within its rated range of -40°F up to 250°F. If your setup runs hotter or involves something more aggressive than standard hydraulic fluid, there are alternative seal materials available including PTFE, Neoprene, FKM, EPDM, and Kalrez. FKM stretches the upper limit all the way to 400°F, and EPDM covers down to -65°F on the cold end. Most general hydraulic tool and agriculture applications won't need anything beyond the standard Buna-N, but it's good to know the options are there if your fluid or temps push outside that window.
Answer by: Customer Support on Dec 13, 2025, 6:06 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
B1H11 -02 1/8-27 Buna-N 1.91 0.98
B2H16 -04 1/4-18 Buna-N 2.26 1.14
B3H21 -06 3/8-18 Buna-N 2.56 1.42
B4HP26 -08 1/2-14 Buna-N 2.96 1.86
B6HP31 -12 3/4-14 Buna-N 3.48 2.22
B8HP36 -16 1 - 11-1/2 Buna-N 4.13 2.61
