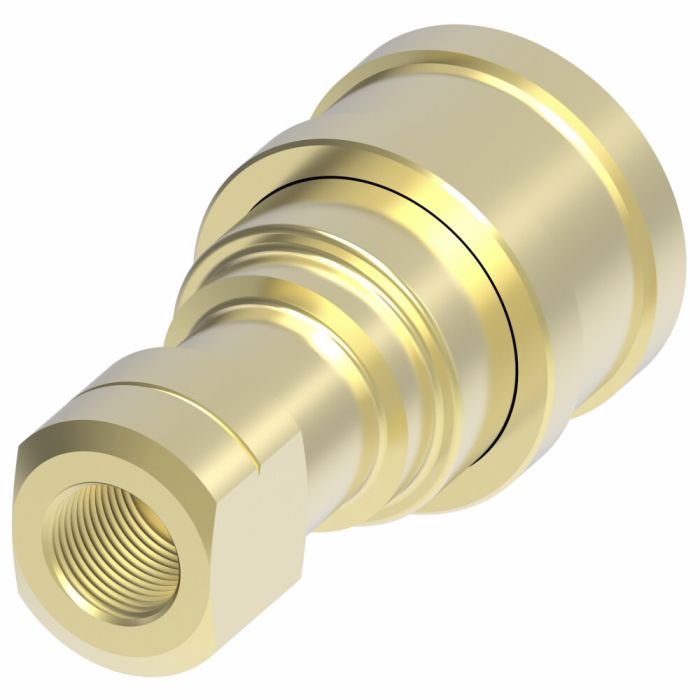

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -12 Coupling, 3/4-14 Female NPT

Ask A Question
A
3.48
Air Inclusion Max
11.50 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
B
2.22
Coupling Size
-12
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.75
End Size 2
0.75
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
9.30 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
B6HP31
Thread 1
3/4-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KY53, Alternate Part Number MI-01331605, Alternate Part Number MINO-00402F32442
Product Weight
1.45 lbs
Product Questions & Answers 2

Product Questions & Answers

How tough is the brass on this thing? I need it to hold up outside.
Question by: Janice S on Aug 4, 2025, 8:10 AM
Brass construction along with stainless steel springs gives it better corrosion resistance and makes it more compatible with different fluids, so it should hold up well for outdoor use.
Answer by: Customer Support on Aug 5, 2025, 2:37 PM
What kind of seal comes standard on this coupling, and are there other options if I'm running something other than hydraulic oil?
Question by: Earl W on Apr 2, 2026, 5:48 PM
Buna-N is the standard seal material, which handles most hydraulic fluid applications just fine. If your system runs something more aggressive, there are several alternatives available: PTFE, Neoprene, FKM, EPDM, and Kalrez. Each of those seal options also carries its own temperature range. Neoprene and EPDM both go down to -65°F, EPDM tops out at +300°F, and FKM handles up to +400°F if you're dealing with high heat. So depending on your fluid and your operating temps, there's likely a seal option that fits what you're working with.
Answer by: Customer Support on Apr 4, 2026, 6:51 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
B1H11 -02 1/8-27 Buna-N 1.91 0.98
B2H16 -04 1/4-18 Buna-N 2.26 1.14
B3H21 -06 3/8-18 Buna-N 2.56 1.42
B4HP26 -08 1/2-14 Buna-N 2.96 1.86
B6HP31 -12 3/4-14 Buna-N 3.48 2.22
B8HP36 -16 1 - 11-1/2 Buna-N 4.13 2.61
