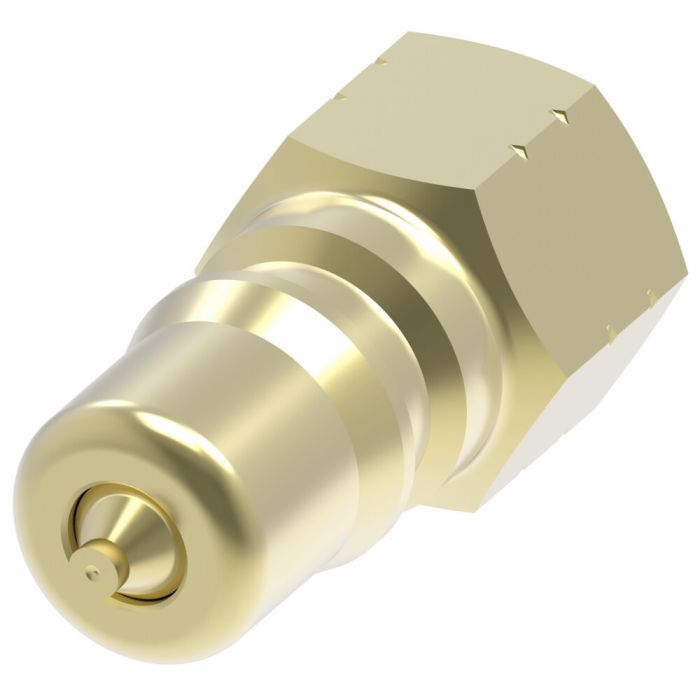

main product photo

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -08 Coupling, 1/2-14 Female NPT

Ask A Question
A
2.03
Air Inclusion Max
3.60 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
Coupling Size
-08
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.50
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
3.50 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
B4KP26
Thread 1
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KV80, Alternate Part Number MI-06230748, Alternate Part Number MINO-00402F32492
Product Weight
0.29 lbs
Product Questions & Answers 3

Product Questions & Answers

got a -08 hose setup already, does this plug end match up with the ISO 7241-1 Series B stuff?
Question by: Earl D on Mar 24, 2026, 6:56 PM
For interchange fit, it’s built to meet ISO 7241-1 Series B dimensional requirements and it’s a -08 coupling size, so it’s intended to mate within that Industrial Interchange Series B style.
Answer by: Customer Support on Mar 26, 2026, 3:05 PM
What kinda fluids can I run through this thing without messin' up the seals?
Question by: Hank C on Feb 5, 2026, 7:08 PM
Buna-N seals are standard, good for general use. But you've also got options like PTFE, Neoprene, FKM, EPDM, and Kalrez if you need something more specialized for different fluids or temps.
Answer by: Customer Support on Feb 6, 2026, 7:50 PM
What kind of seal does this coupling come with standard, and can it handle something like hydraulic oil or maybe some chemical fluids if I swap the seal out?
Question by: Terry R on Jul 8, 2025, 3:43 PM
Buna-N is the standard seal, which covers most hydraulic oils and general fluid transfer work just fine. If you're running something more aggressive like certain chemicals or need higher heat tolerance, there are other seal options available: PTFE, Neoprene, FKM, EPDM, and Kalrez. FKM pushes the upper temp limit all the way to 400 degrees F, so that's the go-to for hotter or more chemically demanding setups. Just make sure you match the seal material to whatever fluid you're running.
Answer by: Customer Support on Jul 10, 2025, 2:11 PM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A Price Buy Now
B1K11 -02 1/8-27 Buna-N 1.26
B2K16 -04 1/4-18 Buna-N 1.52
B3K21 -06 3/8-18 Buna-N 1.76
B4KP26 -08 1/2-14 Buna-N 2.03
B6KP31 -12 3/4-14 Buna-N 2.36
