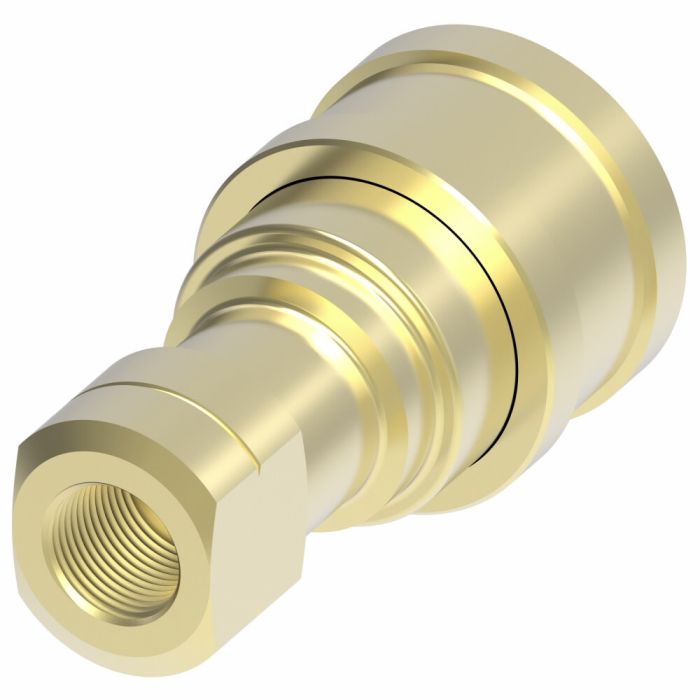

main product photo

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -08 Coupling, 1/2-14 Female NPT

Ask A Question
A
2.96
Air Inclusion Max
3.60 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
B
1.86
Coupling Size
-08
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.50
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
3.50 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
B4HP26
Thread 1
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KV79, Alternate Part Number MI-06230731, Alternate Part Number MINO-00402F32436
Product Weight
0.91 lbs
Product Questions & Answers 3

Product Questions & Answers

what seal options come with this thing, and can I swap 'em out for something that handles higher temps?
Question by: Wes K on Feb 23, 2026, 1:55 PM
Buna-N is the standard seal that ships with it, rated from -40°F up to 250°F. If your application runs hotter than that, FKM seals are available as an option and push the upper limit to 400°F. There are also PTFE, Neoprene, EPDM, and Kalrez options depending on what fluids or temperatures you're working with. EPDM tops out around 300°F, and Neoprene is good down to -65°F but only up to 212°F on the high end.
Answer by: Customer Support on Feb 25, 2026, 6:41 AM
got a 1/2-14 female npt port here. is this the right female half to screw in, and what size coupling is it
Question by: Tony H on Dec 16, 2025, 6:17 PM
The threaded end on this female half is 1/2-14 female NPTF, and the coupling size is -08. It is the socket side (female half) in the HK Series Industrial Interchange, ISO 7241-1 Series B style.
Answer by: Customer Support on Dec 18, 2025, 5:37 PM
Will this here fitting work alright with hydraulic fluid, or is it more for somethin' else?
Question by: Randy W on Jan 22, 2026, 9:36 AM
This quick disconnect is well-suited for hydraulic fluid, thanks to its brass construction and stainless steel springs which offer good corrosion resistance and fluid compatibility.
Answer by: Customer Support on Jan 23, 2026, 9:21 PM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
B1H11 -02 1/8-27 Buna-N 1.91 0.98
B2H16 -04 1/4-18 Buna-N 2.26 1.14
B3H21 -06 3/8-18 Buna-N 2.56 1.42
B4HP26 -08 1/2-14 Buna-N 2.96 1.86
B6HP31 -12 3/4-14 Buna-N 3.48 2.22
B8HP36 -16 1 - 11-1/2 Buna-N 4.13 2.61
