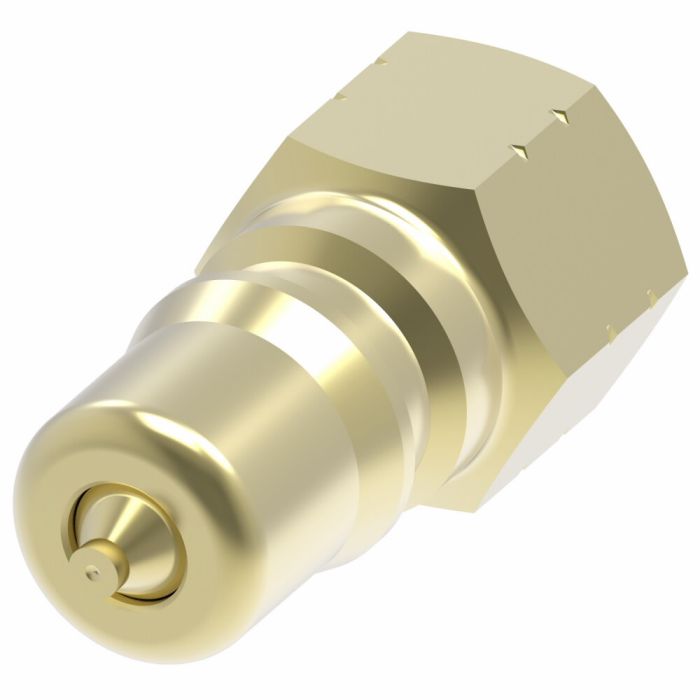

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Male Half, -04 Coupling, 1/4-18 Female NPT

A
1.52
Air Inclusion Max
1.20 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
Coupling Size
-04
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Size 1
0.25
End Size 2
0.25
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
0.90 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
B2K16
Thread 1
1/4-18
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KV78, Alternate Part Number MI-06194510, Alternate Part Number MINO-00015X32615
Product Weight
0.09 lbs

Product Questions & Answers

Running this on a piece of ag equipment that sees everything from late-season mud to chemical exposure. The brass hold up alright in those conditions, or is that gonna be a weak point?
Question by: Harvey C on Sep 28, 2025, 8:39 PM
Brass construction paired with stainless steel springs gives this coupling solid corrosion resistance across a wide range of fluids and environments. For straight hydraulic and general fluid transfer work in ag settings, it holds up well. If you're running it in contact with more aggressive chemicals regularly, the seal material is worth paying attention to. Standard seals are Buna-N, but you can spec it with Neoprene, FKM, EPDM, or Kalrez if the fluid compatibility requires something different.
Answer by: Customer Support on Sep 30, 2025, 6:09 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A Price Buy Now
B1K11 -02 1/8-27 Buna-N 1.26
B2K16 -04 1/4-18 Buna-N 1.52
B3K21 -06 3/8-18 Buna-N 1.76
B4KP26 -08 1/2-14 Buna-N 2.03
B6KP31 -12 3/4-14 Buna-N 2.36
