main product photo

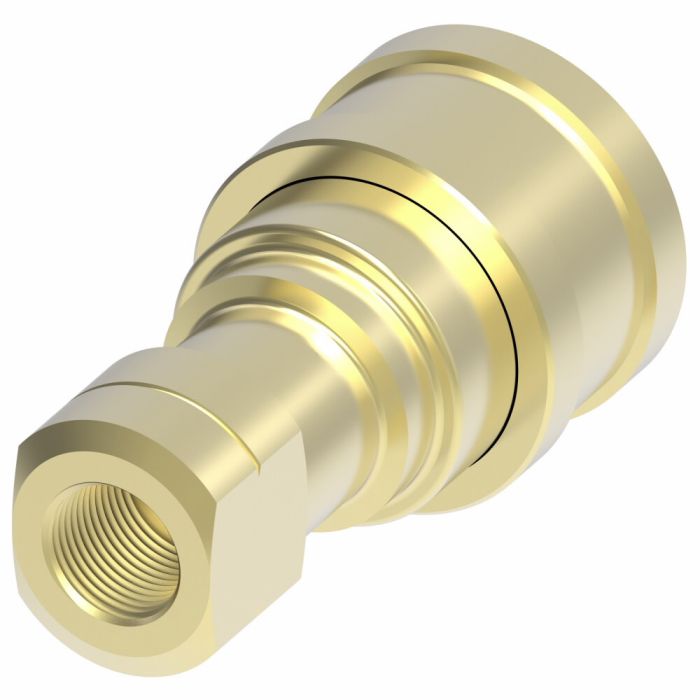

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -04 Coupling, 1/4-18 Female NPT

Ask A Question
A
2.26
Air Inclusion Max
1.20 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
B
1.14
Coupling Size
-04
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.25
End Size 2
0.25
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
0.90 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
B2H16
Thread 1
1/4-18
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KV77, Alternate Part Number MI-05992143, Alternate Part Number MINO-00015X00388
Product Weight
0.30 lbs
Product Questions & Answers 3

Product Questions & Answers

got a -04 hose with 1/4-18 female npt, is this the right female quick disconnect half for it?
Question by: Merle P on Dec 22, 2025, 11:57 AM
You’re looking at a female half (socket) with a 1/4-18 NPTF female thread and a -04 coupling size, so it matches that thread and size callout. It’s the HK Series Industrial Interchange style that meets ISO 7241-1 Series B dimensions.
Answer by: Customer Support on Dec 24, 2025, 10:42 AM
what seal comes standard on this thing, and how hot can it run before it starts givin me trouble?
Question by: Carl Y on Jun 7, 2025, 7:12 PM
Buna-N is the standard seal on this coupling, and it holds up from -40 degrees F all the way to 250 degrees F. If your application runs hotter than that, there are other seal options available including PTFE, Neoprene, FKM, EPDM, and Kalrez. FKM handles the widest heat range of the bunch, rated up to 400 degrees F on the high end.
Answer by: Customer Support on Jun 9, 2025, 5:10 PM
Will this quick disconnect work with different types of hydraulic fluids or just the standard stuff?
Question by: Ralph H on Dec 17, 2025, 10:58 AM
This coupling is made with brass and stainless steel springs to handle a wide range of fluids. The standard Buna-N seal works for many applications, but you can also get it with PTFE, Neoprene, FKM, EPDM, or Kalrez seals if you need something different.
Answer by: Customer Support on Dec 18, 2025, 11:29 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
B1H11 -02 1/8-27 Buna-N 1.91 0.98
B2H16 -04 1/4-18 Buna-N 2.26 1.14
B3H21 -06 3/8-18 Buna-N 2.56 1.42
B4HP26 -08 1/2-14 Buna-N 2.96 1.86
B6HP31 -12 3/4-14 Buna-N 3.48 2.22
B8HP36 -16 1 - 11-1/2 Buna-N 4.13 2.61
