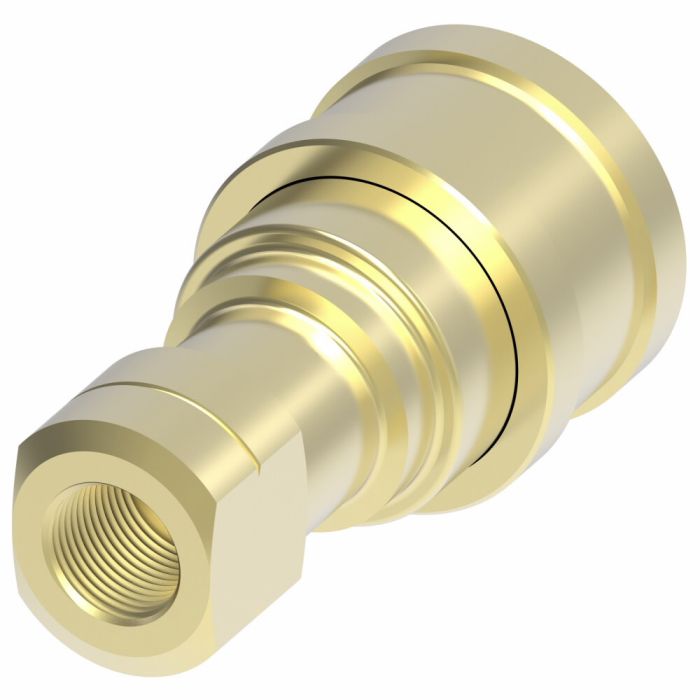

HK Series Industrial Interchange Series B Brass Hydraulic Quick Disconnect, Female Half, -02 Coupling, 1/8-27 Female NPT

A 1.91	Air Inclusion Max 0.60 Cubic_centimeter	Application Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical	B 0.98	Coupling Size -02	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 1 0.13	End Size 2 0.13	End Type 1 Push to Connect	End Type 2 NPTF	Fluid Loss 0.50 Cubic_centimeter	Minimum Working Temperature -40	Safety locking Mechanism None	Seal Material Buna-N	Supplier Part Number B1H11	Thread 1 1/8-27	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1MM65	Product Weight 0.19 lbs

Product Questions & Answers 3

Product Questions & Answers

what kind of seal does this coupling come with, and are there other options if buna-n don't work for my application?

Question by: Wade G on Apr 30, 2025, 7:03 AM

Buna-N is the standard seal material on this coupling, rated for use between -40°F and +250°F. If that range or fluid compatibility doesn't suit your setup, there are alternative seal options available including PTFE, Neoprene, FKM, EPDM, and Kalrez. FKM handles the widest temperature range of the bunch, rated up to +400°F, while EPDM tops out at +300°F. Neoprene drops down to -65°F on the cold end if that matters for your environment.

Answer by: Customer Support on May 1, 2025, 9:50 PM

i got a hose end that’s 1/8-27 female npt, is this the right quick disconnect half for that?

Question by: Joyce J on Feb 16, 2026, 2:55 PM

This female half uses a 1/8-27 female NPT thread (NPTF end type) and it is a -02 coupling size, so it matches up to the same thread and size on the mating side.

Answer by: Customer Support on Feb 17, 2026, 5:23 PM

Will this quick disconnect work for hydraulic tools, like a log splitter?

Question by: Glen R on Sep 5, 2025, 6:14 PM

These HK Series couplings are suitable for hydraulic tools, and they're often used in agricultural equipment and construction.

Answer by: Customer Support on Sep 7, 2025, 6:54 AM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
B1H11	-02	1/8-27	Buna-N	1.91	0.98
B2H16	-04	1/4-18	Buna-N	2.26	1.14
B3H21	-06	3/8-18	Buna-N	2.56	1.42
B4HP26	-08	1/2-14	Buna-N	2.96	1.86
B6HP31	-12	3/4-14	Buna-N	3.48	2.22
B8HP36	-16	1 - 11-1/2	Buna-N	4.13	2.61
