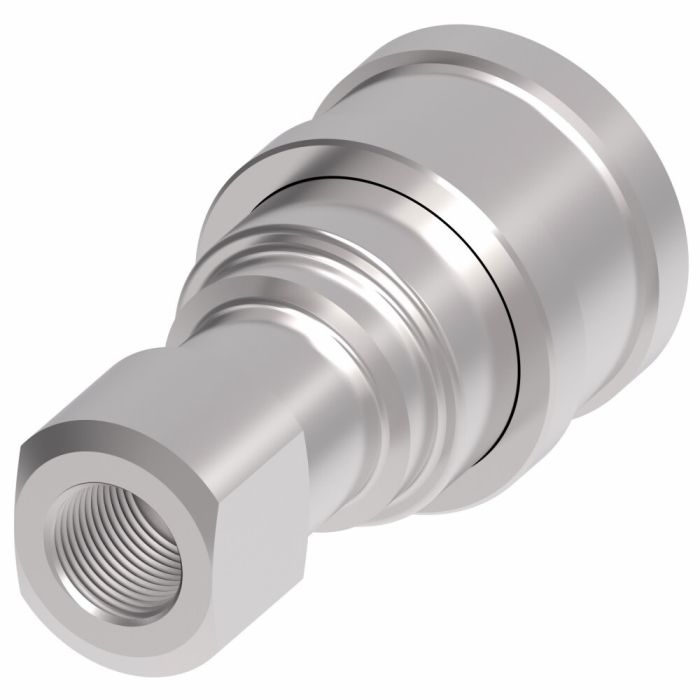

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Female Half, -16 Coupling, 1-11-1/2 Female NPT

A 4.13	Air Inclusion Max 18.00 Cubic_centimeter	Application Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical	B 2.61	Coupling Size -16	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 1 1	End Size 2 1	End Type 1 Push to Connect	End Type 2 NPTF	Fluid Loss 16.90 Cubic_centimeter	Minimum Working Temperature -40	Safety locking Mechanism None	Seal Material Buna-N	Supplier Part Number 8HP36	Thread 1 1-11-1/2	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1KV48, Alternate Part Number MI-06098069, Alternate Part Number MINO-00015X00459	Product Weight 2.27 lbs

Product Questions & Answers 1

Product Questions & Answers

what seal does this come with standard, and can it handle petroleum-based hydraulic fluid?

Question by: Lee M on May 11, 2025, 5:47 PM

Buna-N is the standard seal material on this coupling, and it holds up well with petroleum-based hydraulic fluids across a temperature range of -40°F up to +250°F. If your application runs hotter or involves a fluid that's harder on rubber, there are upgrade options available including FKM, EPDM, Neoprene, PTFE, and Kalrez. FKM tops out at +400°F, which covers most high-heat industrial situations. Just make sure whichever seal you choose lines up with your specific fluid type.

Answer by: Customer Support on May 13, 2025, 6:01 AM

Similar Products

Model Number	Coupling Size	Thread 1	Seal Material	A	B
1H11	-02	1/8-27	Buna-N	1.91	0.98
2H16	-04	1/4-18	Buna-N	2.26	1.14
3H21	-06	3/8-18	Buna-N	2.56	1.42
4HP26	-10	1/2-14	Buna-N	2.96	1.86
6HP31	-12	3/4-14	Buna-N	3.48	2.22
8HP36	-16	1-11-1/2	Buna-N	4.13	2.61
