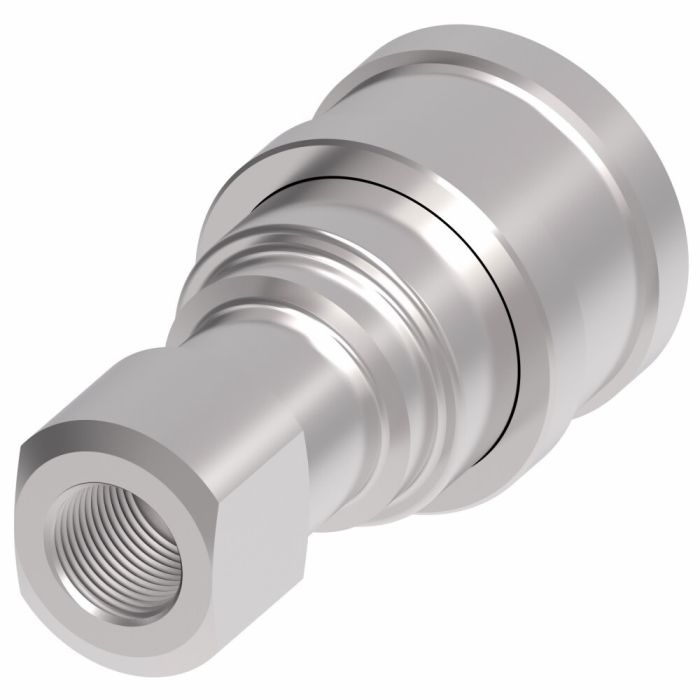

HK Series Industrial Interchange Series B Steel Hydraulic Quick Disconnect, Female Half, -10 Coupling, 1/2-14 Female NPT

Ask A Question
A
2.96
Air Inclusion Max
3.60 Cubic_centimeter
Application
Agriculture, Hydraulic Tool, General Industry, Construction, Fluid Transfer, Transportation, Military, Law Enforcement/Rescue, Chemical, Oil and Gas, Consumer Products, HVAC, Food and Beverage, Trucks, Aerospace, Medical
B
1.86
Coupling Size
-10
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13553
End Gender 2
13555
End Size 1
0.50
End Size 2
0.50
End Type 1
Push to Connect
End Type 2
NPTF
Fluid Loss
3.50 Cubic_centimeter
Minimum Working Temperature
-40
Safety locking Mechanism
None
Seal Material
Buna-N
Supplier Part Number
4HP26
Thread 1
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1KV12, Alternate Part Number MI-06031602, Alternate Part Number MINO-00015X00421
Product Weight
0.84 lbs
Product Questions & Answers 3

Product Questions & Answers

Trying to match up a socket I’ve already got, what thread is on this female half and what coupling size is it?
Question by: Wade R on Jul 27, 2025, 8:47 AM
For fitment, it’s a -10 coupling size with a 1/2-14 female NPTF thread on the socket side.
Answer by: Customer Support on Jul 28, 2025, 2:40 PM
got a 1/2-14 female npt port on my hose end, is this the right female quick disconnect half for that, or am i mixing things up
Question by: Dustin M on Apr 1, 2025, 1:02 PM
This is the female half (socket) with a 1/2-14 female NPTF thread and a -10 coupling size. It also uses a push to connect style on the coupling side, so it is meant to mate by pushing the matching male tip in, not by threading the halves together.
Answer by: Customer Support on Apr 2, 2025, 3:43 PM
What kind of temperatures can these things handle? Just need something that can take the heat, y'know?
Question by: Chad C on Dec 4, 2025, 6:50 AM
Maximum operating temperature for the Buna-N seals on this quick disconnect is -40°F to +250°F. There are alternate seal options available, but those have different temperature ranges, from -65°F to +400°F, depending on the material.
Answer by: Customer Support on Dec 5, 2025, 8:01 AM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
1H11 -02 1/8-27 Buna-N 1.91 0.98
2H16 -04 1/4-18 Buna-N 2.26 1.14
3H21 -06 3/8-18 Buna-N 2.56 1.42
4HP26 -10 1/2-14 Buna-N 2.96 1.86
6HP31 -12 3/4-14 Buna-N 3.48 2.22
8HP36 -16 1-11-1/2 Buna-N 4.13 2.61
