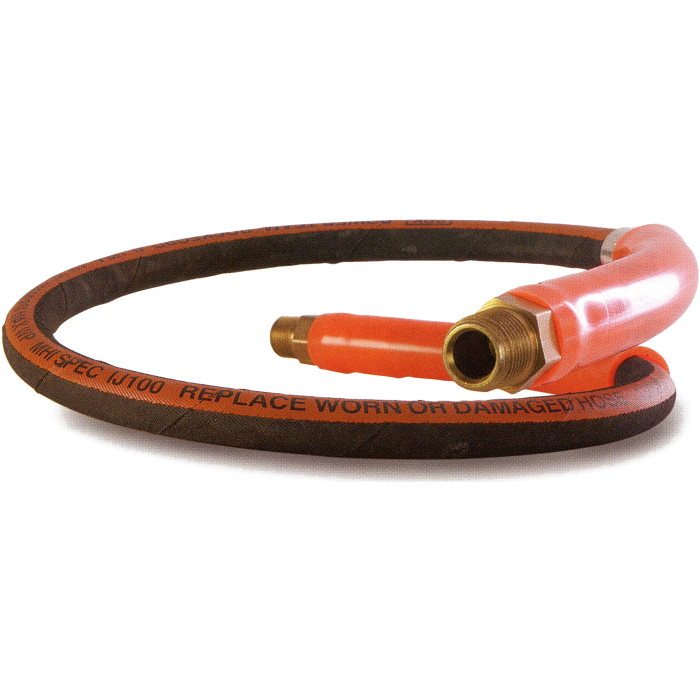

Rubber, Wire-braid Hydraulic Hose Assembly, 0.25 Inch ID Hose, 10 ft Foot Length, 3/8 NPTF Fittings, Plastic Guard, Up To 10000.00 PSI

Burst Pressure 20000	Brand HYDRAULIC TECH USA LLC(SPX)	Brand Hydraulic Tech USA	Pack Size 1.00	UOM EA	Fittings 3/8 NPTF	Guard Type Plastic	I.D. 0.25 in	Includes None	Length 10 ft	Materials Rubber, Wire-braid	Maximum Operating Pressure 10000	Alternate Part Numbers Alternate Part Number C1JN24, Alternate Part Number MI-01369133, Alternate Part Number MINO-00630X06533	Supplier Part Number 9758	Product Weight 3.34 lbs

Product Questions & Answers 2

Product Questions & Answers

hose is rated to 10,000 psi but what happens if pressure spikes above that during operation, is there any safety margin built in?

Question by: Travis E on Aug 12, 2025, 10:23 AM

Burst pressure on this assembly comes in at 20,000 psi, which is exactly double the rated working pressure of 10,000 psi. That 2:1 ratio gives you a real cushion against pressure spikes that happen during normal hydraulic operation. Just keep in mind the 10,000 psi figure is the max you want to run it at continuously. The burst rating is a safety margin, not a second operating range.

Answer by: Customer Support on Aug 14, 2025, 6:23 AM

got a press that runs 10,000 psi. is this hose assembly actually rated for that, or is that just the burst number

Question by: Billy B on Dec 14, 2025, 1:51 PM

Max operating pressure on this assembly is 10,000 PSI, and the burst pressure is 20,000 PSI. So 10,000 PSI is the working rating, not the burst figure.

Answer by: Customer Support on Dec 15, 2025, 4:52 PM

Similar Products

Model Number	Materials	I.D.	Fittings	Length	Guard Type	Includes	Maximum Operating Pressure	Burst Pressure
9754	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	Coupler & Dust Cap	10000	20000
9756	Rubber, Wire-braid	0.25 in	3/8 NPTF	6 ft	Plastic	None	10000	20000
9733	Rubber, Wire-braid	0.375 in	3/8 NPTF	3 ft	Plastic	None	10000	20000
9757	Rubber, Wire-braid	0.25 in	3/8 NPTF	8 ft	Plastic	None	10000	20000
9758	Rubber, Wire-braid	0.25 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9759	Rubber, Wire-braid	0.25 in	3/8 NPTF	12 ft	Plastic	None	10000	20000
9760	Rubber, Wire-braid	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
9764	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	Coupler & Dust Cap	10000	20000
9765	Polyurethane	0.25 in	3/8 NPTF	2 ft	Spring	None	10000	20000
9766	Polyurethane	0.25 in	3/8 NPTF	3 ft	Spring	None	10000	20000
9767	Polyurethane	0.25 in	3/8 NPTF	6 ft	Spring	None	10000	20000
9769	Polyurethane	0.25 in	3/8 NPTF	10 ft	Spring	None	10000	20000
9771	Polyurethane	0.25 in	3/8 NPTF	20 ft	Spring	None	10000	20000
9775	Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	None	10000	40000
9777	Rubber, Wire-braid	0.375 in	3/8 NPTF	10 ft	Plastic	None	10000	20000
9778	Rubber, Wire-braid	0.375 in	3/8 NPTF	20 ft	Plastic	None	10000	20000
TWH15	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	15 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH20	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	20 ft	Plastic	Coupler & Dust Cap	10000	40000
TWH50	Dual-Line Non-Conductive	0.25 in	3/8 NPTF	50 ft	Plastic	Coupler & Dust Cap	10000	40000
