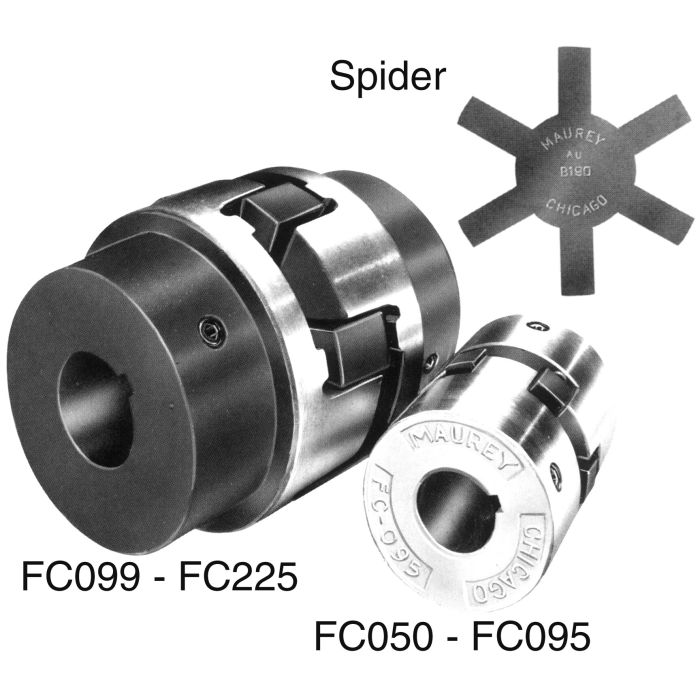

Hi-Q Coupling Half, 0.88 Inch Bore, 3/16 Inch Key

Bore
0.88
Brand
Maurey Manufacturing Co
Brand
Maurey Manufacturing Co
Pack Size
1.00
UOM
EA
Horsepower Rating
Buna-N: 7.2, Urethane: 11.9
Key
3/16
Supplier Part Number
L100-7/8
Alternate Part Numbers
Alternate Part Number C1CQ97, Alternate Part Number L100-7/8, Alternate Part Number MI-00507073, Alternate Part Number MINO-00544K23088
Product Weight
2.00 lbs

Product Questions & Answers

Got a hydraulic pump I'm trying to mate up to an electric motor and wondering if this coupling half will handle that kind of setup?
Question by: Tammy F on Jul 3, 2025, 3:11 PM
Coupling hydraulic pumps to electric motors is exactly what this part is built around. The Hi-Q half is machined cast iron, so it holds up well in industrial use, and it compensates for minor misalignments which is a real help when you're lining up a pump and motor in the field. Just keep in mind the angular offset tolerance is 1 degree and the parallel offset tops out at 0.015 inches, so your alignment still needs to be reasonably close before you button everything up.
Answer by: Customer Support on Jul 5, 2025, 6:16 AM
got a 7/8 shaft with a 3/16 keyway, is this the right coupling half or am i off a size
Question by: Gary R on Jun 10, 2025, 11:45 AM
This one matches a 0.875 inch (7/8) bore and a 3/16 inch key, so it lines up with a 7/8 shaft that uses a 3/16 key.
Answer by: Customer Support on Jun 11, 2025, 9:52 PM

Similar Products

Model Number Bore Key Horsepower Rating Price Buy Now
FC095-1/2-W-1/8K 0.5 1/8 Buna-N: 3.2, Urethane: 5.0
FC095-3/4 0.75 3/16 Buna-N: 3.2, Urethane: 5.0
FC100-1-1/8 1.125 1/4 Buna-N: 7.2, Urethane: 11.9
FC100-3/4 0.75 3/16 Buna-N: 7.2, Urethane: 11.9
FC095-1-1/8 1.125 1/4 Buna-N: 3.2, Urethane: 5.0
FC100-1-3/8 1.375 5/16 Buna-N: 7.2, Urethane: 11.9
FC100-1/2 0.5 -- Buna-N: 7.2, Urethane: 11.9
FC100-5/8 0.625 3/16 Buna-N: 7.2, Urethane: 11.9
FC100-7/8 0.875 3/16 Buna-N: 7.2, Urethane: 11.9
FC110-1-1/8 1.125 1/4 Buna-N: 13.1, Urethane: 28.8
FC110-3/4 0.75 3/16 Buna-N: 13.1, Urethane: 28.8
FC110-7/8 0.875 3/16 Buna-N: 13.1, Urethane: 28.8
FC095-1 1 1/4 Buna-N: 3.2, Urethane: 5.0
L100-1 1 Buna-N: 7.2, Urethane: 11.9
