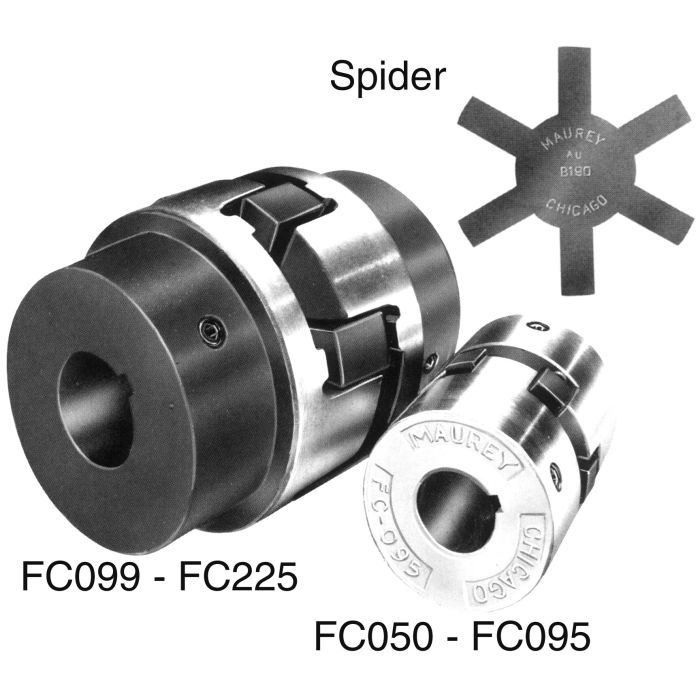

Hi-Q Coupling Half, 1.38 Inch Bore, 5/16 Inch Key

Bore 1.38	Brand Maurey Manufacturing Co	Brand Maurey Manufacturing Co	Pack Size 1.00	UOM EA	Horsepower Rating Buna-N: 7.2, Urethane: 11.9	Key 5/16	Supplier Part Number L100-1-3/8	Alternate Part Numbers Alternate Part Number C1CQ94, Alternate Part Number L100-1-3/8, Alternate Part Number L10010038, Alternate Part Number L100X1-3/8	Product Weight 1.42 lbs

Product Questions & Answers 1

Product Questions & Answers

What's the horsepower limit on this thing, and does it matter which spider I run with it?

Question by: Warren S on Oct 25, 2025, 4:04 PM

Horsepower capacity does vary depending on the spider material. With a Buna-N spider, you're rated at 7.2 HP at 1800 RPM. Step up to a urethane spider and that rating jumps to 11.9 HP at the same speed. Those figures are based on driving hydraulic pumps with a service factor of 1.5, so if your application is something other than a pump drive, the usable rating may differ. Worth keeping in mind when you're spec'ing it out.

Answer by: Customer Support on Oct 27, 2025, 10:12 AM

Similar Products

Model Number	Bore	Key	Horsepower Rating
FC095-1/2-W-1/8K	0.5	1/8	Buna-N: 3.2, Urethane: 5.0
FC095-3/4	0.75	3/16	Buna-N: 3.2, Urethane: 5.0
FC100-1-1/8	1.125	1/4	Buna-N: 7.2, Urethane: 11.9
FC100-3/4	0.75	3/16	Buna-N: 7.2, Urethane: 11.9
FC095-1-1/8	1.125	1/4	Buna-N: 3.2, Urethane: 5.0
FC100-1-3/8	1.375	5/16	Buna-N: 7.2, Urethane: 11.9
FC100-1/2	0.5	--	Buna-N: 7.2, Urethane: 11.9
FC100-5/8	0.625	3/16	Buna-N: 7.2, Urethane: 11.9
FC100-7/8	0.875	3/16	Buna-N: 7.2, Urethane: 11.9
FC110-1-1/8	1.125	1/4	Buna-N: 13.1, Urethane: 28.8
FC110-3/4	0.75	3/16	Buna-N: 13.1, Urethane: 28.8
FC110-7/8	0.875	3/16	Buna-N: 13.1, Urethane: 28.8
FC095-1	1	1/4	Buna-N: 3.2, Urethane: 5.0
L100-1	1		Buna-N: 7.2, Urethane: 11.9
