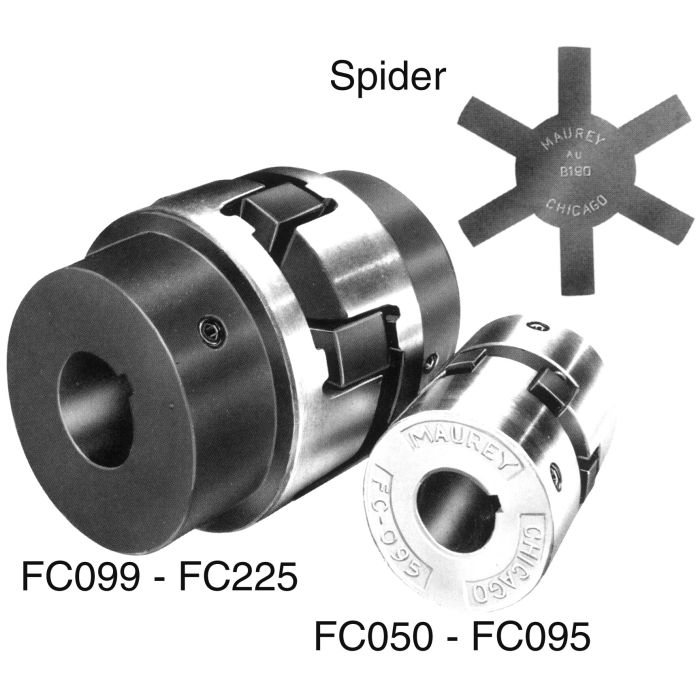

Hi-Q Coupling Half, 1.13 Inch Bore, 1/4 Inch Key

Bore 1.13	Brand Maurey Manufacturing Co	Brand Maurey Manufacturing Co	Pack Size 1.00	UOM EA	Horsepower Rating Buna-N: 7.2, Urethane: 11.9	Key 1/4	Supplier Part Number L100-1-1/8	Alternate Part Numbers Alternate Part Number C1EP74, Alternate Part Number MI-00507076, Alternate Part Number MINO-00544K23094	Product Weight 1.59 lbs

Product Questions & Answers 4

Product Questions & Answers

got a 1-1/8 shaft with a 1/4 keyway, is this coupling half the right fit or am i off a size

Question by: Hugh T on Mar 2, 2026, 6:43 AM

It matches a 1.125 inch bore and a 1/4 inch key, so it lines up with a 1-1/8 inch shaft that uses a 1/4 inch key.

Answer by: Customer Support on Mar 4, 2026, 6:54 AM

Will this here coupling work okay hooking up a hydraulic pump to a motor?

Question by: Rhonda C on Nov 14, 2025, 8:50 PM

Typically, these couplings are used to connect hydraulic pumps to electric motors. However, they can work in plenty of other applications where you need to join shafts. Just keep in mind the maximum angular offset of 1° and parallel offset of 0.015 inches.

Answer by: Customer Support on Nov 16, 2025, 8:19 AM

got a hydraulic pump bolting up to an electric motor and need a coupling half with a 1-1/8 inch bore and 1/4 inch keyway -- this the right one?

Question by: Judy B on Oct 14, 2025, 4:22 PM

that bore and key size match up exactly. The 1.13 inch bore with a 1/4 inch key is what this coupling half is built around, so it fits right into that pump-to-motor setup without any modification. Just make sure your shaft and keyway dimensions are machined to match, since these parts are precision ground and should seat clean when everything lines up.

Answer by: Customer Support on Oct 16, 2025, 7:26 AM

Will this coupling hold up alright connecting a hydraulic pump to a motor, or is it meant for lighter duty stuff?

Question by: Lynn R on Jun 25, 2025, 2:24 PM

These Hi-Q coupling halves are indeed typically used to link hydraulic pumps to electric motors. The horsepower rating is 7.2 for Buna-N and 11.9 for Urethane spiders when driving hydraulic pumps at 1800 RPM.

Answer by: Customer Support on Jun 26, 2025, 8:03 PM

Similar Products

Model Number	Bore	Key	Horsepower Rating
FC095-1/2-W-1/8K	0.5	1/8	Buna-N: 3.2, Urethane: 5.0
FC095-3/4	0.75	3/16	Buna-N: 3.2, Urethane: 5.0
FC100-1-1/8	1.125	1/4	Buna-N: 7.2, Urethane: 11.9
FC100-3/4	0.75	3/16	Buna-N: 7.2, Urethane: 11.9
FC095-1-1/8	1.125	1/4	Buna-N: 3.2, Urethane: 5.0
FC100-1-3/8	1.375	5/16	Buna-N: 7.2, Urethane: 11.9
FC100-1/2	0.5	--	Buna-N: 7.2, Urethane: 11.9
FC100-5/8	0.625	3/16	Buna-N: 7.2, Urethane: 11.9
FC100-7/8	0.875	3/16	Buna-N: 7.2, Urethane: 11.9
FC110-1-1/8	1.125	1/4	Buna-N: 13.1, Urethane: 28.8
FC110-3/4	0.75	3/16	Buna-N: 13.1, Urethane: 28.8
FC110-7/8	0.875	3/16	Buna-N: 13.1, Urethane: 28.8
FC095-1	1	1/4	Buna-N: 3.2, Urethane: 5.0
L100-1	1		Buna-N: 7.2, Urethane: 11.9
