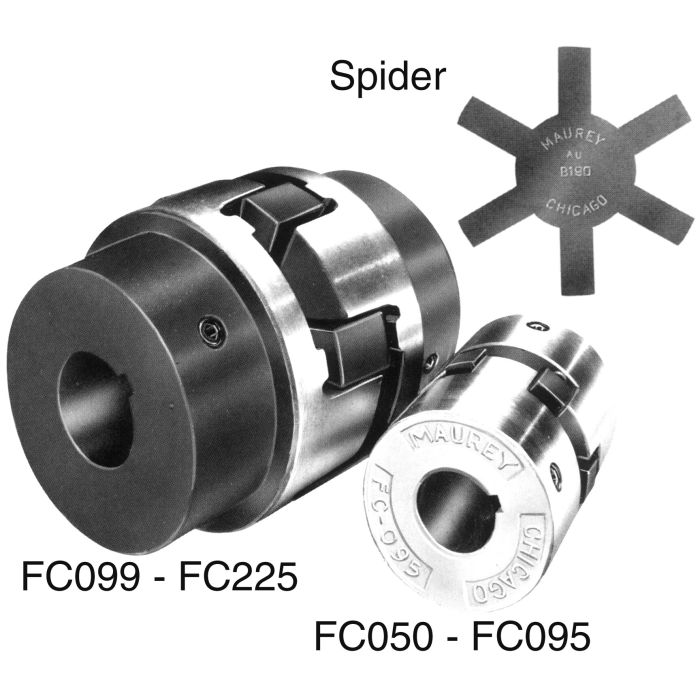

Hi-Q Coupling Half, 0.75 Inch Bore, 3/16 Inch Key

Bore 0.75	Brand Maurey Manufacturing Co	Brand Maurey Manufacturing Co	Pack Size 1.00	UOM EA	Horsepower Rating Buna-N: 3.2, Urethane: 5.0	Key 3/16	Supplier Part Number L095X3/4	Alternate Part Numbers Alternate Part Number C1CQ91, Alternate Part Number L095X3/4, Alternate Part Number MI-00507058, Alternate Part Number MINO-00544K23058	Product Weight 0.90 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a motor shaft that’s 3/4 and takes a 3/16 key. Is this coupling half the right bore and keyway for that?

Question by: Howard E on May 14, 2025, 9:23 PM

It matches a 0.75 inch bore with a 3/16 inch key, so it lines up with a 3/4 inch keyed shaft in those sizes.

Answer by: Customer Support on May 16, 2025, 8:01 AM

what's the temp range on the spider for this coupling? got a spot where it gets pretty cold in winter and hot as blazes come july

Question by: Dale S on Nov 21, 2025, 7:01 PM

The Buna-N spider handles anywhere from -20°F up to 180°F, so seasonal swings in most working environments won't be an issue. If you're dealing with something colder than that on the low end, the Urethane spider goes all the way down to -80°F and still tops out at 180°F on the high side. Either way, summer heat in a typical industrial setting shouldn't push you past that upper limit.

Answer by: Customer Support on Nov 23, 2025, 6:18 AM

got a 3/4 shaft with a 3/16 keyway, is this coupling half the right fit or am i missin something

Question by: Lyle H on Sep 30, 2025, 10:32 AM

It matches a 0.75 inch bore and a 3/16 inch key. It is a Hi-Q coupling half meant for that shaft and key size, commonly used when coupling a hydraulic pump to an electric motor.

Answer by: Customer Support on Oct 2, 2025, 8:17 AM

Similar Products

Model Number	Bore	Key	Horsepower Rating
FC095-1/2-W-1/8K	0.5	1/8	Buna-N: 3.2, Urethane: 5.0
FC095-3/4	0.75	3/16	Buna-N: 3.2, Urethane: 5.0
FC100-1-1/8	1.125	1/4	Buna-N: 7.2, Urethane: 11.9
FC100-3/4	0.75	3/16	Buna-N: 7.2, Urethane: 11.9
FC095-1-1/8	1.125	1/4	Buna-N: 3.2, Urethane: 5.0
FC100-1-3/8	1.375	5/16	Buna-N: 7.2, Urethane: 11.9
FC100-1/2	0.5	--	Buna-N: 7.2, Urethane: 11.9
FC100-5/8	0.625	3/16	Buna-N: 7.2, Urethane: 11.9
FC100-7/8	0.875	3/16	Buna-N: 7.2, Urethane: 11.9
FC110-1-1/8	1.125	1/4	Buna-N: 13.1, Urethane: 28.8
FC110-3/4	0.75	3/16	Buna-N: 13.1, Urethane: 28.8
FC110-7/8	0.875	3/16	Buna-N: 13.1, Urethane: 28.8
FC095-1	1	1/4	Buna-N: 3.2, Urethane: 5.0
L100-1	1		Buna-N: 7.2, Urethane: 11.9
