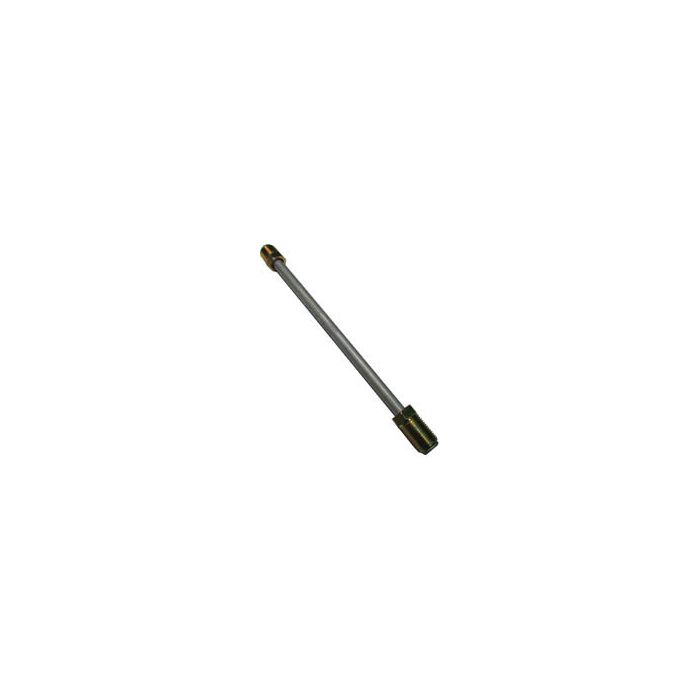

Brakequip Fitting - Female7/16NS X 5/8NF EXT. Thread

Brand Brakequip, LLC	Brand Brakequip	Pack Size 1.00	UOM EA	Supplier Part Number HFIFX23	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

got a line that calls for a female 7/16NS and then a 5/8NF on the outside, is that what this fitting is?

Question by: Wayne T on Jul 11, 2025, 6:16 PM

Built for that exact thread combination, it has a female 7/16NS on one side and a 5/8NF external thread on the other, so it matches those sizes when you need a precise fit in a hydraulic connection.

Answer by: Customer Support on Jul 13, 2025, 6:49 AM

part number HFIFX23 -- is that the female 7/16NS side going into the hydraulic line, or is the 5/8NF the end that threads into the component?

Question by: Ross T on Aug 23, 2025, 9:07 PM

The female 7/16NS is the end that receives the male fitting from the hydraulic line side, and the 5/8NF external thread is what screws into the port or component on the other end. Two different thread standards on opposite ends is exactly the point of this fitting, so you get a secure transition between those two sizes without adapters stacked on adapters.

Answer by: Customer Support on Aug 25, 2025, 12:00 PM
