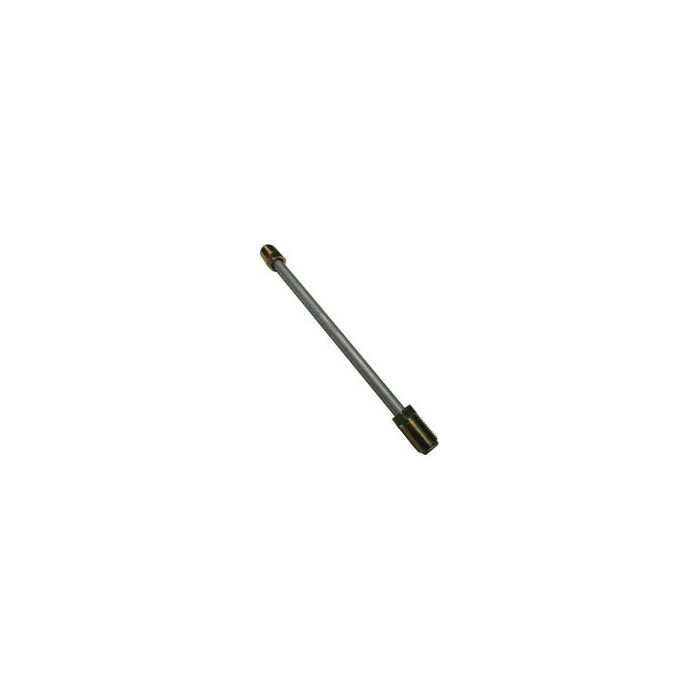

BRAKEQUIP FITTING - FEMALE 7/16 X 24NS X 2 - 7/8 X 18NS EXT THD

Brand Brakequip, LLC	Brand Brakequip	Pack Size 1.00	UOM EA	Supplier Part Number HFIFX21	Product Weight 0.44 lbs

Product Questions & Answers 3

Product Questions & Answers

What are the two thread sizes on this fitting, and which end is which?

Question by: Marvin F on May 27, 2025, 5:09 PM

The female end runs 7/16 x 24NS, and the external threaded end is 7/8 x 18NS. So if you're threading into a port or receiver on one side and need a male connection going out the other, that's exactly how this one is set up. Both thread sizes are fixed, so just make sure your mating components match those specs before ordering.

Answer by: Customer Support on May 29, 2025, 6:19 AM

got a brakequip line with 7/16 x 24NS on the female side. is this the one that steps up to 7/8 x 18NS external threads?

Question by: Brett M on Jan 21, 2026, 10:14 AM

Match the thread callouts and it lines up. This Brakequip fitting has a female 7/16 x 24NS thread on one end, and the other end is an external 7/8 x 18NS thread, so it serves as a step between those two sizes.

Answer by: Customer Support on Jan 23, 2026, 7:58 AM

Will this fitting hold up in a hydraulic system running around 2000 PSI?

Question by: Norm M on Sep 9, 2025, 8:48 AM

This fitting is designed for secure and reliable connections in hydraulic systems, so it should be suitable for systems operating at 2000 PSI. Just be sure to follow the manufacturer's installation guidelines for optimal performance.

Answer by: Customer Support on Sep 10, 2025, 5:19 PM
