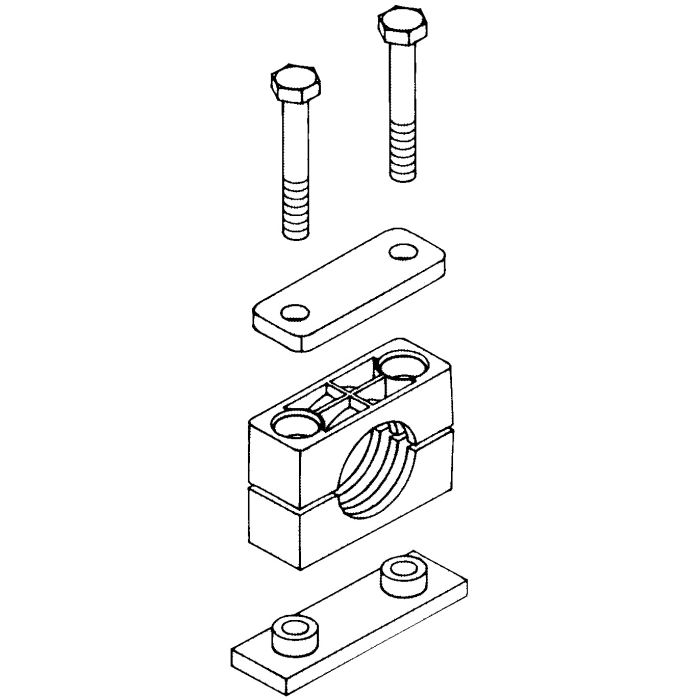

Heavy Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 60.3 mm mm Size

B2 1.75	Body I.D. Profiled	Brand Stauff-Special Quotes	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Group 6s	H2 4.61	H3 2.17	I1 4.53	Materials Polypropylene	Package Qty. 1	Pipe Size 2	Size 60.3 mm	Supplier Part Number STNA25186	Thread Sealant No	Tube Size 2.37	Alternate Part Numbers Alternate Part Number C1JM72, Alternate Part Number SPAL6603SPPDPALAS STAUFF CLAMP, Alternate Part Number STNA25186	Product Weight 2.61 lbs

Product Questions & Answers 2

Product Questions & Answers

What size pipe does this clamp fit? Just want to make sure it'll work for my project.

Question by: Lee R on Sep 25, 2025, 7:05 PM

This support clamp is made for pipes with an outside diameter of 60.3 mm, which converts to roughly 2.37 inches.

Answer by: Customer Support on Sep 27, 2025, 4:17 PM

what's the temp range on this clamp? we run lines through some pretty cold areas in winter and need to know if polypropylene holds up

Question by: Johnny H on Nov 29, 2025, 9:15 AM

Polypropylene has a rated range of -22°F on the low end up to 194°F at the top. For most industrial pipe and tubing runs that see cold winters, that lower threshold covers typical outdoor conditions pretty well. If your environment regularly pushes below -22°F, the polyamide version of this clamp series handles down to -40°F and would be the better call for that situation.

Answer by: Customer Support on Nov 30, 2025, 2:22 PM

Similar Products

Model Number	Size	Tube Size	Pipe Size	Group	Materials	Body I.D.	Package Qty.	B2	H2	H3	I1
834152	48.3 mm	1.9	1.5	6s	Polypropylene	Profiled	1	1.75	4.61	2.17	4.53
834153	60.3 mm	2.37	2	6s	Polypropylene	Profiled	1	1.75	4.61	2.17	4.53
834154	88.9 mm	3.5	3	7s	Polypropylene	Profiled	1	2.25	5.91	2.75	5.98
856238	26.9 mm	1.06		4s	Polypropylene	Profiled	1	1.18	2.8	1.27	2.77
SPAL4213SPPDPALA	21.3 mm	0.84	0.5	4s	Polypropylene	Profiled	1	1.18	2.8	1.27	2.77
