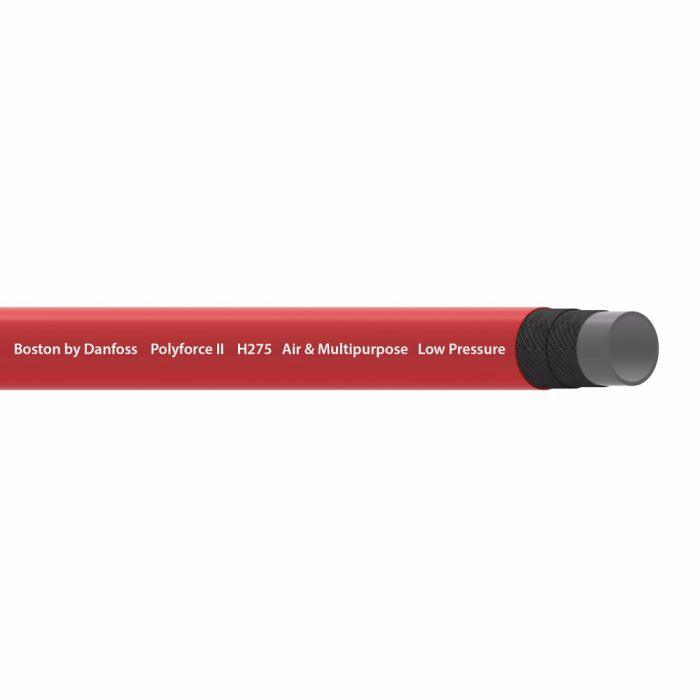

Danfoss / Eaton Polyforce II RED 100FT

Abrasion Resistance 28	Application General purpose, low pressure, air and water.	Certifications SAE J517	Color Red	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC	Cover Style Pin-Pricked	Dash Size -24	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Minimum Bend Radius 3.50	Minimum Bend Radius 3.5	Minimum Working Temperature -10	NMFC 70	Product Width 1.94	Qualified Hose Fittings E, Z, 265 P, 1A, Barbed inserts, Quick acting or long shank, Quick disconnect	Reinforcement Material Textile	Sub Brand None	Supplier Part Number H27524RD-100	Tube Material Polyvinyl Chloride (PVC)	Product Weight 0.23 lbs

Product Questions & Answers 1

Product Questions & Answers

What kind of fittings work with this hose? I've got some barbed inserts laying around, would those be okay?

Question by: Kurt A on Sep 18, 2025, 3:48 PM

This hose is qualified to work with a broad selection of fittings, including E, Z, 265P, 1A, barbed inserts, quick-acting or long-shank, and quick-disconnect types.

Answer by: Customer Support on Sep 20, 2025, 8:09 AM
