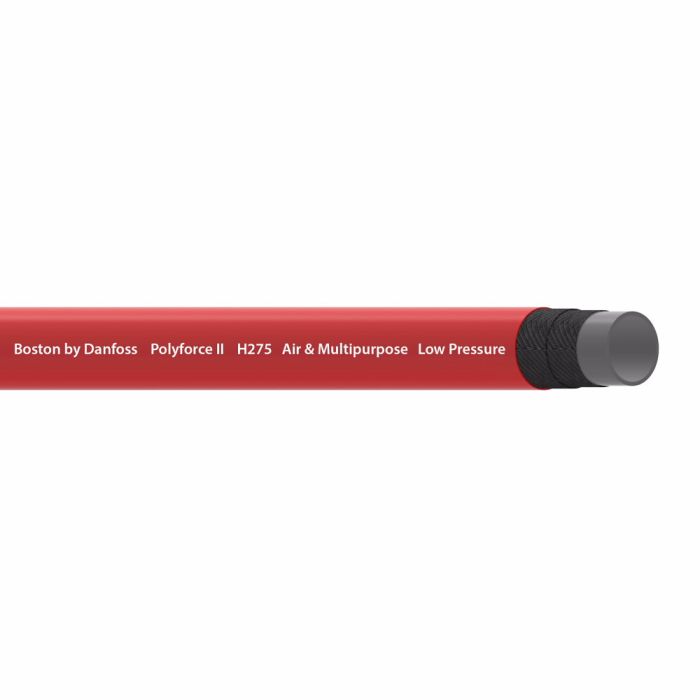

DANFOSS / EATON POLYFORCE II 1/2 ID 250 PSI

Abrasion Resistance
28
Alternate Part Numbers
Alternate Part Number C1FU69
Application
General purpose, low pressure, air and water.
Certifications
SAE J517
Color
Yellow
Conductivity
30
Construction
1 Ply Braid
Cover Material
PVC
Cover Style
Pin-Pricked
Dash Size
-8
Brand
Danfoss (IGS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
FT
Features
A solution for every hose need|Industry leader since 1870|Designed for safety and reliability
ICC
Hoses and Flexible Tubes
Language
English
Minimum Bend Radius
1.25
Minimum Bend Radius
1.25
Minimum Working Temperature
-10
Product Width
0.75
Qualified Hose Fittings
E, Z, 265 P, 1A, Barbed inserts, Quick acting or long shank, Quick disconnect
Reinforcement Material
Textile
Sub Brand
None
Supplier Part Number
H27508YW-500R
Tube Material
Polyvinyl Chloride (PVC)
Product Weight
0.05 lbs

Product Questions & Answers

Will this hose hold up if I'm running water through it pretty much all day long?
Question by: Ronnie H on Mar 30, 2026, 7:01 PM
This Danfoss / Eaton Polyforce II hose is designed for general-purpose use with both air and water, so it should work fine for continuous water flow as long as you stay within the 250 PSI pressure rating.
Answer by: Customer Support on Apr 1, 2026, 9:52 AM
