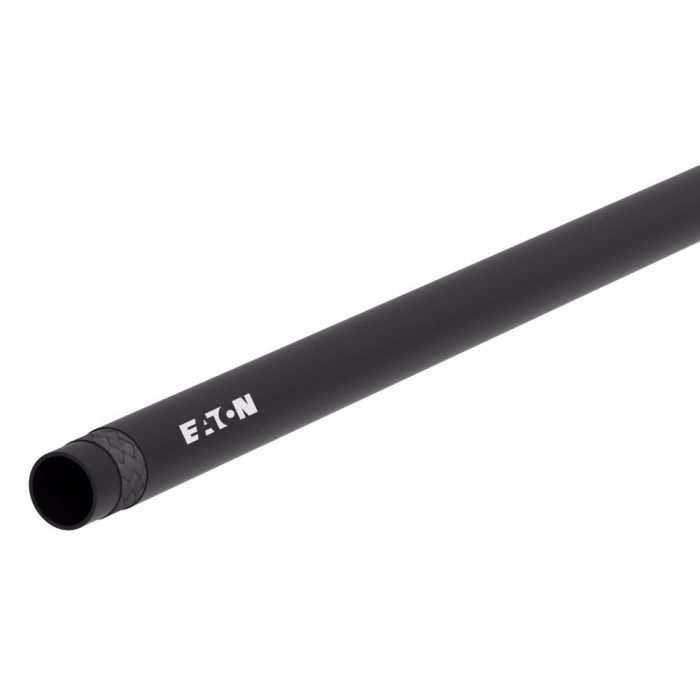

DANFOSS / EATON H057Fuel Line Hose H05703-100R

Specifications

Abrasion Resistance 28	Application Low pressure / high temperature fuel for passenger cars and light trucks, also small engine applications. Not intended for fuel injected applications.	Certifications SAE 30R7	Color Black	Conductivity 30	Construction 1 Ply Braid	Cover Material Neoprene	Dash Size -3	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	Features Highly abrasion resistant cover\|Small number of hoses for many fuel options\|Proven reliability with high temperature resistance	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 1.25	Minimum Bend Radius 1.25	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.43	Qualified Hose Fittings 057 B	Reinforcement Material Fiber	Sub Brand None	Supplier Part Number H05703-100R	Tube Material Nitrile	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

runs pretty hot under the hood on my truck, this hose gonna hold up to that kind of heat?

Question by: Johnny H on Mar 11, 2026, 6:06 PM

Nitrile tube construction paired with a neoprene cover gives this hose solid resistance to high temperatures, and that's actually one of its main strengths. It's built specifically for low pressure, high temperature fuel environments in passenger cars and light trucks, so heat under the hood is exactly the kind of condition it was put together for.

Answer by: Customer Support on Mar 12, 2026, 6:26 PM

got a small engine that runs warm, is this hose ok for low pressure fuel lines or is it more for cars

Question by: Clint M on Sep 1, 2025, 12:49 PM

For low pressure, high temperature fuel service, it fits right in. Eaton’s H057 is called out for passenger cars, light trucks, and small engine applications, with a nitrile tube and a neoprene cover that holds up well to abrasion.

Answer by: Customer Support on Sep 2, 2025, 1:10 PM
