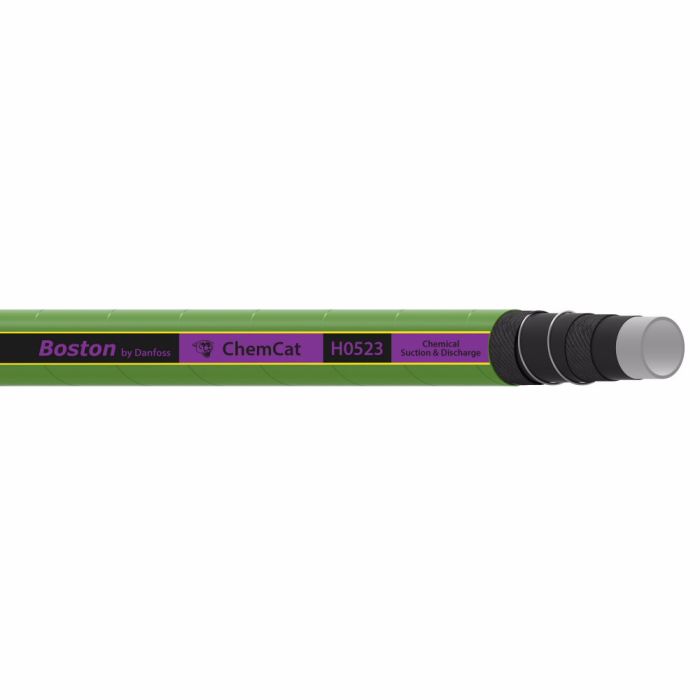

Danfoss / Eaton Industrial Hose Chemical UHMW

Abrasion Resistance 29	Application Chemical transfer.	Color Green	Compliances FDA Approved	Construction Multi Braid	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 12.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Embossed	Minimum Bend Radius 5.50	Minimum Bend Radius 5.5	Minimum Working Temperature -40	Product Width 1.53	Qualified Hose Fittings Cam and groove, Combination nipple, Male NPT	Reinforcement Material Fiber and Helical Wire	Sub Brand None	Supplier Part Number H052316GN-100	Tube Material Thermoplastic	Product Weight 0.69 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot to run hose, how sharp can i bend this -16 without kinking it

Question by: Floyd B on Oct 2, 2025, 9:24 AM

For the -16 size, the minimum bend radius is 5.5 inches, so you want your routing to stay at or above that radius to keep the hose from being forced into too tight of a turn.

Answer by: Customer Support on Oct 3, 2025, 8:20 PM

If I'm movin' chemicals with this hose, what kind of fittings work best?

Question by: Rex H on Jul 5, 2025, 4:51 PM

Cam and groove, combination nipple, and male NPT fittings are all listed as being compatible with this Danfoss / Eaton chemical hose.

Answer by: Customer Support on Jul 6, 2025, 5:53 PM
