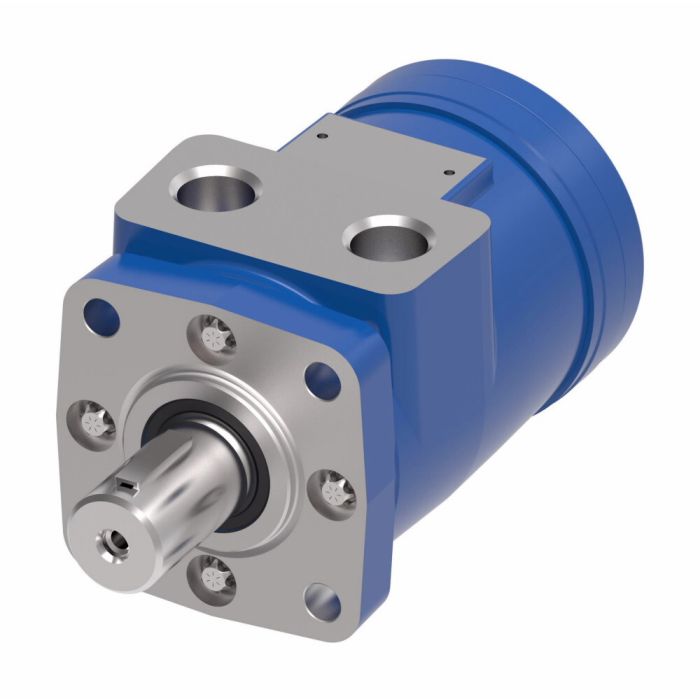

H Series Geroter Motor, 3.60 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Application
Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
Design Code
9
Displacement
3.60
Displacement
3.6
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Compact yet powerful|Extended bearing life|Increased shaft seal
Identification
None
Mount
4 Bolt
Mount
4 Bolt
Port Type
.500-14 NPTF Dryseal Pipe Thread Ports
Ports
1/2 NPT
Ports
1/2 NPT
Shaft
1 in. Straight Keyed
Shaft
1 in. Straight Keyed
Supplier Part Number
101-1754-009
Torque Rating
91 newton metre
Torque Rating
91 newton metre
Valve Options
None
Alternate Part Numbers
Alternate Part Number C1FE54
Product Weight
11.20 lbs

Product Questions & Answers

got a 4-bolt mount geroler motor that needs replacing on my grain auger setup, will this one drop right in with a 1 inch keyed shaft?
Question by: Wade H on Apr 23, 2025, 7:49 AM
For a 4-bolt flange with a 1 inch straight keyed shaft, yes this matches up on both counts. The H Series runs 1/2 NPT ports as well, so as long as your existing hydraulic connections is sized the same, the swap should be pretty straightforward. Displacement comes in at 3.60 cubic inches per revolution, so confirm that lines up with what your auger drive was originally spec'd for before pulling the trigger.
Answer by: Customer Support on Apr 25, 2025, 6:11 AM
