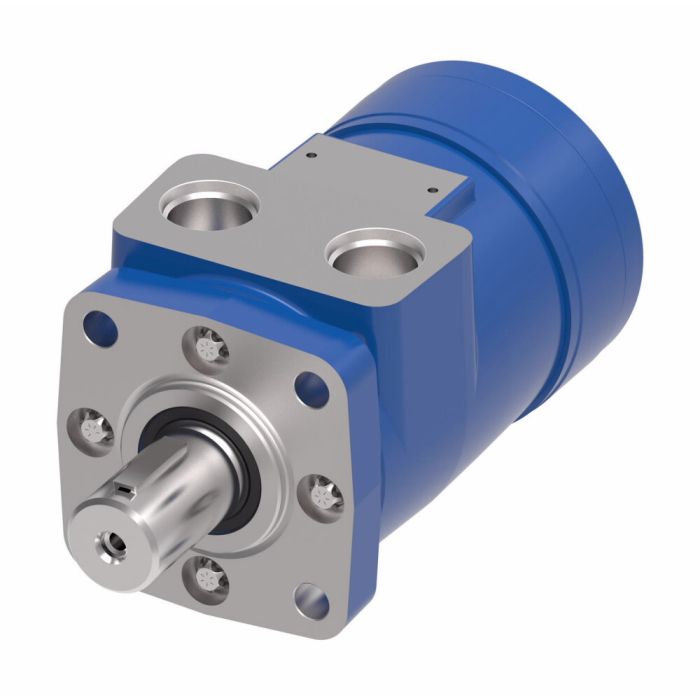

H Series Geroter Motor, 8.90 cu in/rev, 4 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 7/8-14 St.Thd O-Ring Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Application Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers	Design Code 9	Displacement 8.90	Displacement 8.9	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Compact yet powerful\|Extended bearing life\|Increased shaft seal	Identification None	Mount 4 Bolt	Mount 4 Bolt	Port Type .875-14 UNF-2B SAE O-Ring Ports	Ports 7/8-14 St.Thd O-Ring	Ports 7/8-14 St.Thd O-Ring	Shaft 1 in. Straight Keyed	Shaft 1 in. Straight Keyed	Supplier Part Number 101-1752-009	Torque Rating 221 newton metre	Torque Rating 221 newton metre	Valve Options None	Alternate Part Numbers Alternate Part Number 101-1752-009, Alternate Part Number C1GG40	Product Weight 12.10 lbs

Product Questions & Answers 2

Product Questions & Answers

got a motor with 7/8-14 o-ring ports and a 4 bolt mount, is that what this one has?

Question by: Shawn E on Jul 6, 2025, 6:16 AM

It uses .875-14 UNF-2B SAE O-ring ports (7/8-14 straight thread O-ring) and a 4 bolt mounting flange, so those two connection points match what you described.

Answer by: Customer Support on Jul 8, 2025, 6:05 AM

motor's been sitting a while before I got it installed, any break-in steps I should follow before putting it under full load?

Question by: Todd P on Jul 31, 2025, 3:54 PM

Run it for roughly an hour at about 30% of rated pressure before you put it to work at full capacity. Make sure the motor is filled with hydraulic fluid before you apply any load at all. Skipping that step is one of the faster ways to shorten the life of a motor like this, so it's worth the extra time upfront.

Answer by: Customer Support on Aug 2, 2025, 6:00 AM

Similar Products

Model Number	Displacement	Mount	Shaft	Ports	Features
101-1006	14.1	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1040	22.6	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1001	2.8	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1002	4.5	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1003	5.9	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1004	9.7	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1005	11.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1007	17.9	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1009	2.8	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1010	4.5	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1011	5.9	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1012	9.7	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1013	11.3	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1014	14.1	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1015	17.9	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1016	22.6	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1025	2.8	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1026	4.5	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1027	5.9	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1028	9.7	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1029	11.3	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1030	14.1	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1031	17.9	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1032	22.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1033	2.8	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1034	4.5	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1035	5.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1039	17.9	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1700	2.2	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1702	7.3	2 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1704	2.2	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1705	3.6	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1706	7.3	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1707	8.9	2 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1749	2.2	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1752	8.9	4 Bolt	1 in. Straight Keyed	7/8-14 St.Thd O-Ring	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1753	2.2	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1754	3.6	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
101-1755	7.3	4 Bolt	1 in. Straight Keyed	1/2 NPT	Compact yet powerful\|Extended bearing life\|Increased shaft seal
