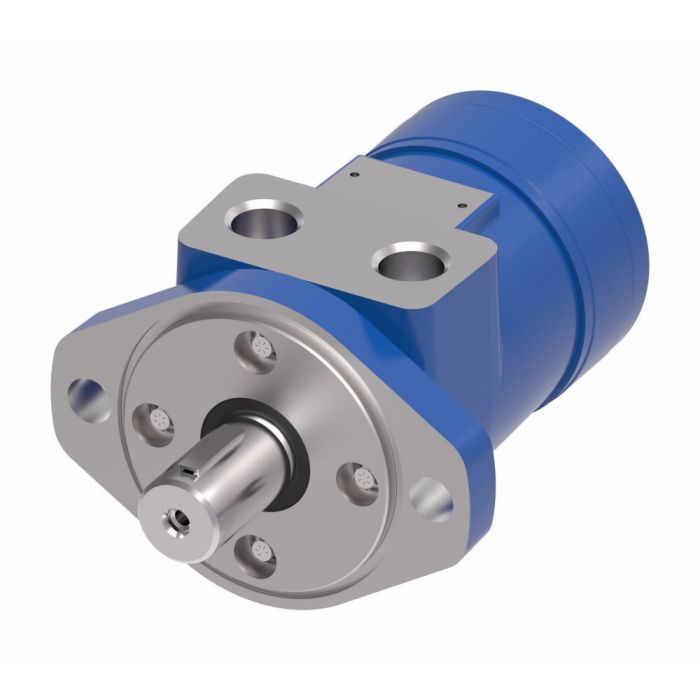

H Series Geroter Motor, 8.90 cu in/rev, 2 Bolt Mounting Flange, 1 in. Straight Keyed Shaft, 1/2 NPT Ports, Compact yet powerful|Extended bearing life|Increased shaft seal

Application
Agricultural augers, Harvesters, Seeders, Industrial sweepers and floor polishers
Design Code
9
Displacement
8.90
Displacement
8.9
Brand
Danfoss Power Solutions II (Char-Lynn)
Brand
Char-Lynn
Pack Size
1.00
UOM
EA
Features
Compact yet powerful|Extended bearing life|Increased shaft seal
Identification
None
Mount
2 Bolt
Mount
2 Bolt
Port Type
.500-14 NPTF Dryseal Pipe Thread Ports
Ports
1/2 NPT
Ports
1/2 NPT
Shaft
1 in. Straight Keyed
Shaft
1 in. Straight Keyed
Supplier Part Number
101-1707-009
Torque Rating
163.54 newton metre
Torque Rating
163.54 newton metre
Valve Options
None
Alternate Part Numbers
Alternate Part Number C1FE52
Product Weight
12.81 lbs

Product Questions & Answers

been running an auger setup for a few seasons now and the old motor finally gave out. this one's got the 8.9 displacement and a straight keyed shaft, that gonna bolt right up on a 2-bolt flange mount?
Question by: Wayne C on Dec 29, 2025, 6:56 PM
For a 2-bolt flange configuration with a 1-inch straight keyed shaft, this motor lines up with that kind of auger application directly. The port size is 1/2 NPT, so as long as your existing hydraulic connections matches that, you're in good shape on the connection side too. Before you put it under full load, plan on running it easy for about an hour at roughly 30% of rated pressure. That break-in period makes a real difference in how long the motor holds up over time.
Answer by: Customer Support on Dec 31, 2025, 6:03 AM

Similar Products

Model Number Displacement Mount Shaft Ports Features Price Buy Now
101-1006 14.1 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1040 22.6 2 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1001 2.8 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1002 4.5 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1003 5.9 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1004 9.7 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1005 11.3 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1007 17.9 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1009 2.8 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1010 4.5 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1011 5.9 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1012 9.7 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1013 11.3 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1014 14.1 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1015 17.9 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1016 22.6 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1025 2.8 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1026 4.5 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1027 5.9 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1028 9.7 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1029 11.3 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1030 14.1 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1031 17.9 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1032 22.6 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1033 2.8 2 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1034 4.5 2 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1035 5.9 2 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1039 17.9 2 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1700 2.2 2 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1702 7.3 2 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1704 2.2 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1705 3.6 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1706 7.3 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1707 8.9 2 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1749 2.2 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1752 8.9 4 Bolt 1 in. Straight Keyed 7/8-14 St.Thd O-Ring Compact yet powerful|Extended bearing life|Increased shaft seal
101-1753 2.2 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1754 3.6 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
101-1755 7.3 4 Bolt 1 in. Straight Keyed 1/2 NPT Compact yet powerful|Extended bearing life|Increased shaft seal
