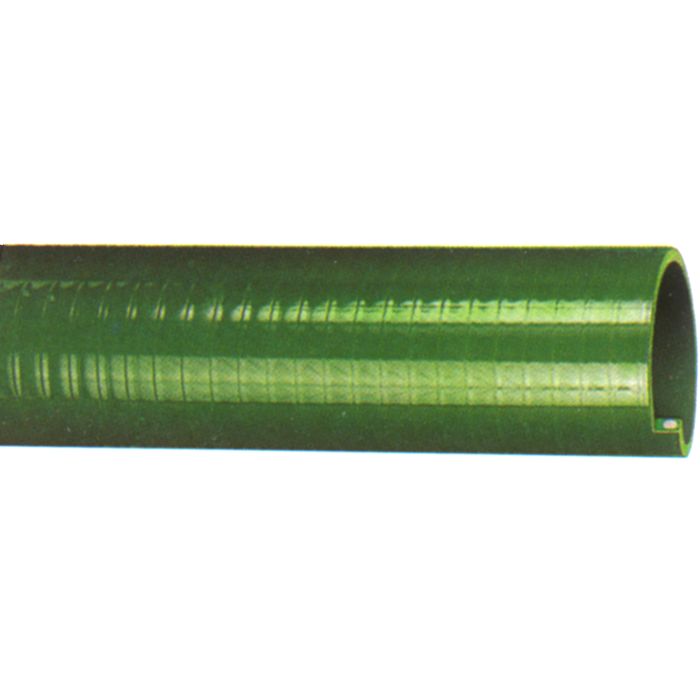

Green PVC Water Suction & Discharge Hose
Application |
General purpose suction and transfer applications in construction and mining. Irrigation lines, rock dusting, wellpoint systems, agri-foam systems, liquid fertilizer transfer. Please review application requirements and limitations found in |
Construction |
Solid olive green PVC body. Rigid thermoplastic helix reinforcement. |
Fittings |
Shank Type (Aluminum, Steel, Brass, Stainless Steel). Cam & Groove (Aluminum, Polypropylene) |
Fittings & Fitting Attachment Suggestions |
• Cam & Groove or Shank Type fittings attached with preformed clamps (except for 6 inch and 8 inch sizes). NOTE: 6 inch and 8 inch I.D. sizes have a convoluted cover for greater flexibility. • Preformed clamps will not work with these two sizes. For these two sizes, use |
Temperature Range |
-4°F to 150°F. (Actual service temperature range is application-dependent). |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure @ 68F | Maximum Operating Pressure @ 104F | Vacuum Rating at 68F | Vacuum Rating at 104F | Minimum Bend Radius | Package Qty. | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|
| GR200-PVC-SUCTIO | 2 | 2.32 | 65 | 45 | 28 | 24 | 7 | 100 |
|
|
| GR300-PVC-SUCTIO | 3 | 3.43 | 60 | 40 | 28 | 22 | 10 | 100 |
|
|
| GR600-PVC-SUCTIO | 6 | 6.75 | 40 | 25 | 28 | 20 | 30 | 100 |
|
|
| GR100-PVC-SUCTIO | 1 | 1.26 | 85 | 60 | 28 | 26 | 3 | 100 |
|
