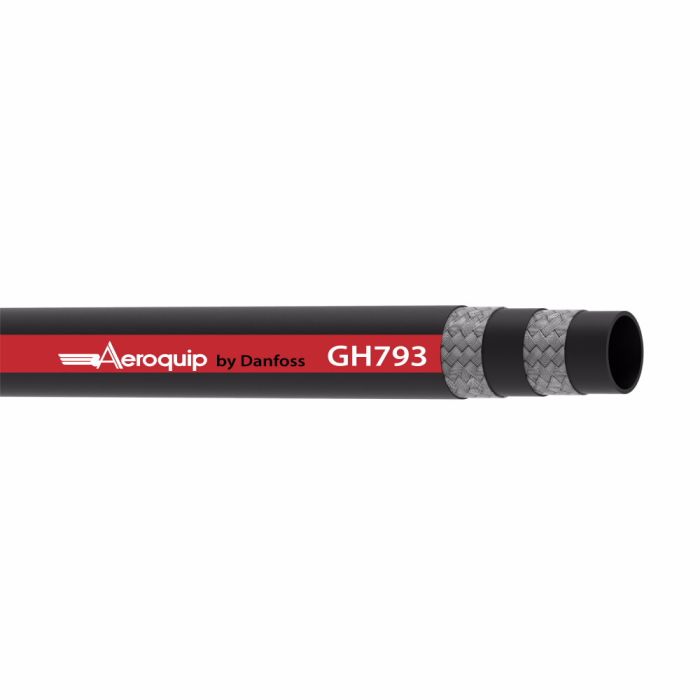

DANFOSS / Aeroquip GH793 MATCHMATE GLOBAL DO GH793-8R250

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1CX77	Application Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.	Certifications ISO 1436-1 Type 2SN\|EN853 2SN\|SAE 100R2AT Type S	Color Black	Compliances MSHA Approved\|DNV	Conductivity 30	Construction 2-ply braid	Cover Material PVC/nitrile blend	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 7	Minimum Bend Radius 7	Minimum Working Temperature -40	Product Width 0.50	Qualified Hose Fittings 1A, 1SA	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH793-8R250	Tube Material Nitrile	Product Weight 0.47 lbs

Product Questions & Answers

got a tight spot to route hose, how sharp can i bend this GH793 -8 before it kinks up

Question by: Janice C on Jul 23, 2025, 6:25 AM

Minimum bend radius on the GH793 -8 is 7 inches, so you want your routing to stay at or above that radius to avoid kinking and premature wear.

Answer by: Customer Support on Jul 24, 2025, 4:47 PM

I'm trying to find a hose that can handle some pretty low temps, reckon this one'll do the trick?

Question by: Lance E on Sep 18, 2025, 9:39 PM

This Aeroquip GH793 hose is rated down to a minimum working temperature of -40 degrees, so it should hold up in cold conditions.

Answer by: Customer Support on Sep 20, 2025, 6:03 AM
