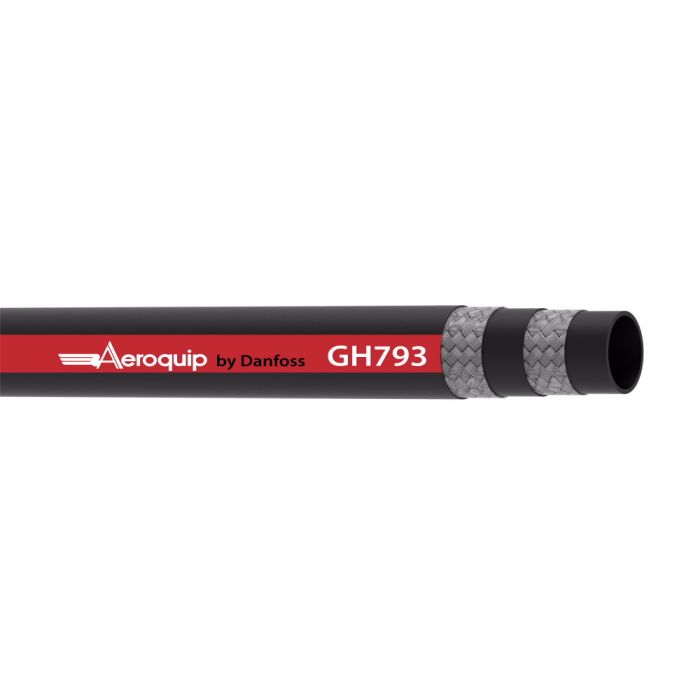

Aeroquip 1.5IN 2000 PSI Hose GH793-24

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1CX71, Alternate Part Number MI-00290553, Alternate Part Number MINO-00015F38179	Application Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.	Certifications ISO 1436-1 Type 2SN\|SAE 100R2AT Type S\|EN853 2SN	Color Black	Compliances MSHA Approved\|DNV	Conductivity 30	Construction 2-ply braid	Cover Material PVC/nitrile blend	Dash Size -24	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 20	Minimum Bend Radius 20	Minimum Working Temperature -40	Product Width 1.50	Qualified Hose Fittings 1A, 1SA	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH793-24	Tube Material Nitrile	Product Weight 2.33 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a skid steer that runs on water-glycol fluid and the hose I got on there now is just tearing up from rubbing against the frame. This one rated for that kind of fluid, and will the cover hold up better than a standard rubber hose?

Question by: Kent H on Jul 30, 2025, 3:14 PM

Water-glycol is one of the listed compatible fluids for this hose, so you're good on that front. The cover is a PVC/nitrile blend, which is rated for premium abrasion resistance, so it should hold up a lot better than a plain rubber hose in a spot where it's taking constant contact from a frame or bracket.

Answer by: Customer Support on Aug 1, 2025, 8:33 AM

Reckon this hose will hold up if I'm runnin' hydraulic fluid through it all day long?

Question by: Harvey W on Jan 2, 2026, 8:04 PM

This Aeroquip hose is designed to handle continuous use in hydraulic systems using petroleum and water-glycol base fluids. It's built with a 2-ply braided construction for durability under high pressure.

Answer by: Customer Support on Jan 3, 2026, 8:21 PM

got a tight spot to route it through, how picky is this hose on bend radius

Question by: Keith H on Jul 30, 2025, 7:58 AM

Minimum bend radius on this one is 20 inches. If you have to bend it tighter than that, you are more likely to shorten hose life, especially under pressure.

Answer by: Customer Support on Jul 31, 2025, 1:36 PM
