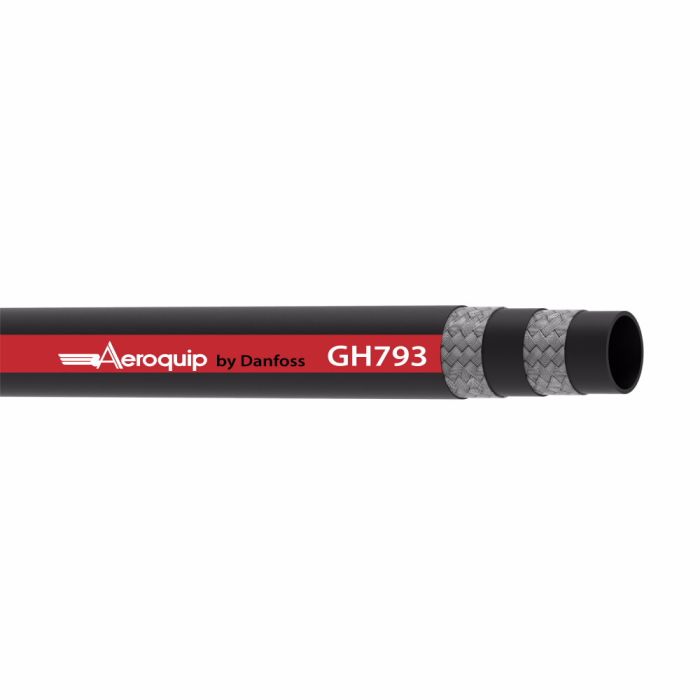

Aeroquip GH793-20 MATCHMATE 2-Wire 1-1/4(ID) 2500 PSI Hose GH793-20

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number GH793-20-100, Alternate Part Number MI-00290550, Alternate Part Number MINO-00015F38177	Application Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.	Certifications EN853 2SN\|ISO 1436-1 Type 2SN\|SAE 100R2AT Type S	Color Black	Compliances DNV\|MSHA Approved	Conductivity 30	Construction 2-ply braid	Cover Material PVC/nitrile blend	Dash Size -20	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 16.50	Minimum Bend Radius 16.5	Minimum Working Temperature -40	Product Width 1.25	Qualified Hose Fittings 1A, 1SA	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH793-20	Tube Material Nitrile	Product Weight 1.93 lbs

Product Questions & Answers 5

Product Questions & Answers

hose is rated for water-glycol fluids or just straight petroleum stuff?

Question by: Connie G on May 1, 2025, 10:20 AM

Both, actually. The GH793-20 handles petroleum-based hydraulic fluids and water-glycol base fluids, and it also works with lubricating oils and water. The nitrile tube material is what makes it compatible across that range. Pretty solid option if your system runs a water-glycol mix for fire resistance or freeze protection.

Answer by: Customer Support on May 3, 2025, 6:22 AM

got a -20 hose setup now. is this GH793-20 actually 1-1/4 inch ID and rated 2500 psi?

Question by: Melvin H on Dec 3, 2025, 1:17 PM

Spec-wise, GH793-20 is a dash -20 hose with a 1.25 inch inside diameter and a 2500 PSI working pressure rating.

Answer by: Customer Support on Dec 5, 2025, 7:56 AM

hose is rated for water-glycol fluids or just straight petroleum? got a system running both and need something that'll hold up to either

Question by: Janet S on Dec 29, 2025, 2:40 PM

Both are covered with this hose. The GH793-20 is built for hydraulic systems running petroleum-based fluids and water-glycol base fluids, so you won't need to pick one or the other. The nitrile tube handles both fluid types without issue.

Answer by: Customer Support on Dec 31, 2025, 6:16 AM

What kind of stuff is this hose good for, like what fluids can it handle?

Question by: Wes P on Nov 21, 2025, 4:58 PM

Application-wise, this Aeroquip hose is made for hydraulic systems using petroleum-based fluids, water-glycol base fluids, lubricating oils, and even just plain water.

Answer by: Customer Support on Nov 23, 2025, 1:02 PM

trying to swap out a worn hose, is GH793-20 the 1-1/4 inch inside diameter one rated for 2500 psi

Question by: Patty B on Aug 26, 2025, 9:19 AM

For fit, GH793-20 is the -20 dash size with a 1.25 inch inside diameter, and it is a 2500 PSI working pressure hose in the GH793 series.

Answer by: Customer Support on Aug 27, 2025, 6:15 PM
