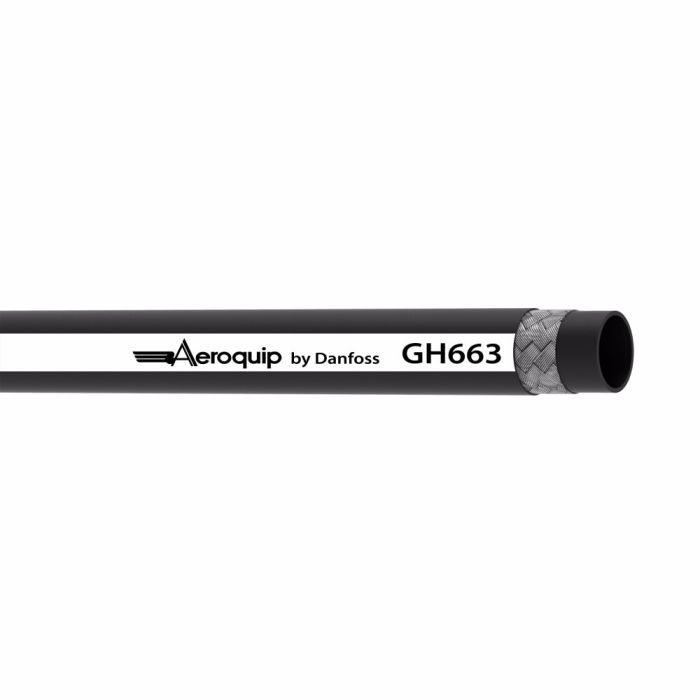

Aeroquip MATCHMATE HOSE GH663-32

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1FF98	Application Hydraulic systems with petroleum and water-glycol base fluids, for lubricating oils and water.	Certifications SAE 100R17\|EN853 1SN\|SAE 100R1AT\|EN857 1SC\|EN853 1ST\|ABS	Color Black	Compliances USCG\|DNV\|MSHA Approved	Conductivity 30	Construction 1 Ply Braid	Cover Material PVC/nitrile blend	Dash Size -32	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 400000 cycle	Language English	Lay Line Style Transfer Tape	Minimum Bend Radius 12.40	Minimum Bend Radius 12.4	Minimum Working Temperature -46	Product Width 2	Qualified Hose Fittings TTC	Reinforcement Material Wire	Sub Brand Aeroquip	Supplier Part Number GH663-32	Tube Material Nitrile	Product Weight 1.84 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight spot to snake this through. how sharp can i bend the GH663-32 before i’m asking for trouble

Question by: Brett B on Apr 24, 2025, 3:18 PM

Minimum bend radius on the -32 GH663-32 is 12.4 inches. Keeping bends at or above that radius helps avoid kinking and protects the reinforcement.

Answer by: Customer Support on Apr 25, 2025, 8:28 PM

Will this hose work with just any kinda hydraulic fluid or is it picky?

Question by: Dustin R on Sep 17, 2025, 8:33 PM

This hose is designed specifically for hydraulic systems using petroleum-based fluids, water-glycol fluids, lubricating oils, and water.

Answer by: Customer Support on Sep 19, 2025, 6:47 AM

does this hose hold up in marine or mining applications, or is it more of a standard shop hose?

Question by: Troy J on Feb 6, 2026, 10:13 AM

Rated and approved for both environments. It carries USCG compliance for marine use and MSHA approval for mining, so it's built to handle the kind of rough conditions those settings throw at equipment. The conductive construction and multi-standard certifications including SAE 100R1AT, EN853 1SN, and EN857 1SC back that up across a broad range of demanding hydraulic applications.

Answer by: Customer Support on Feb 7, 2026, 4:04 PM
